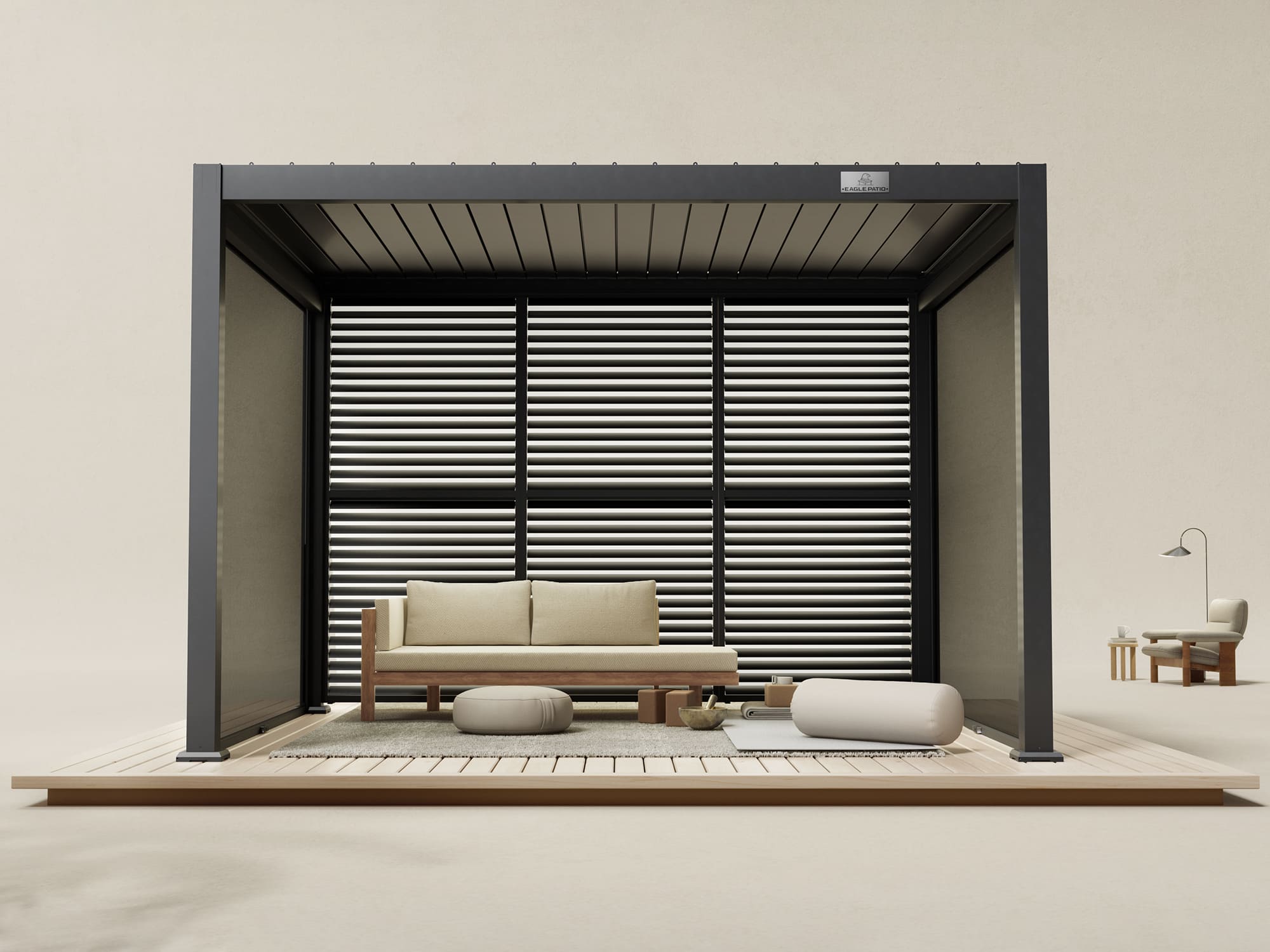

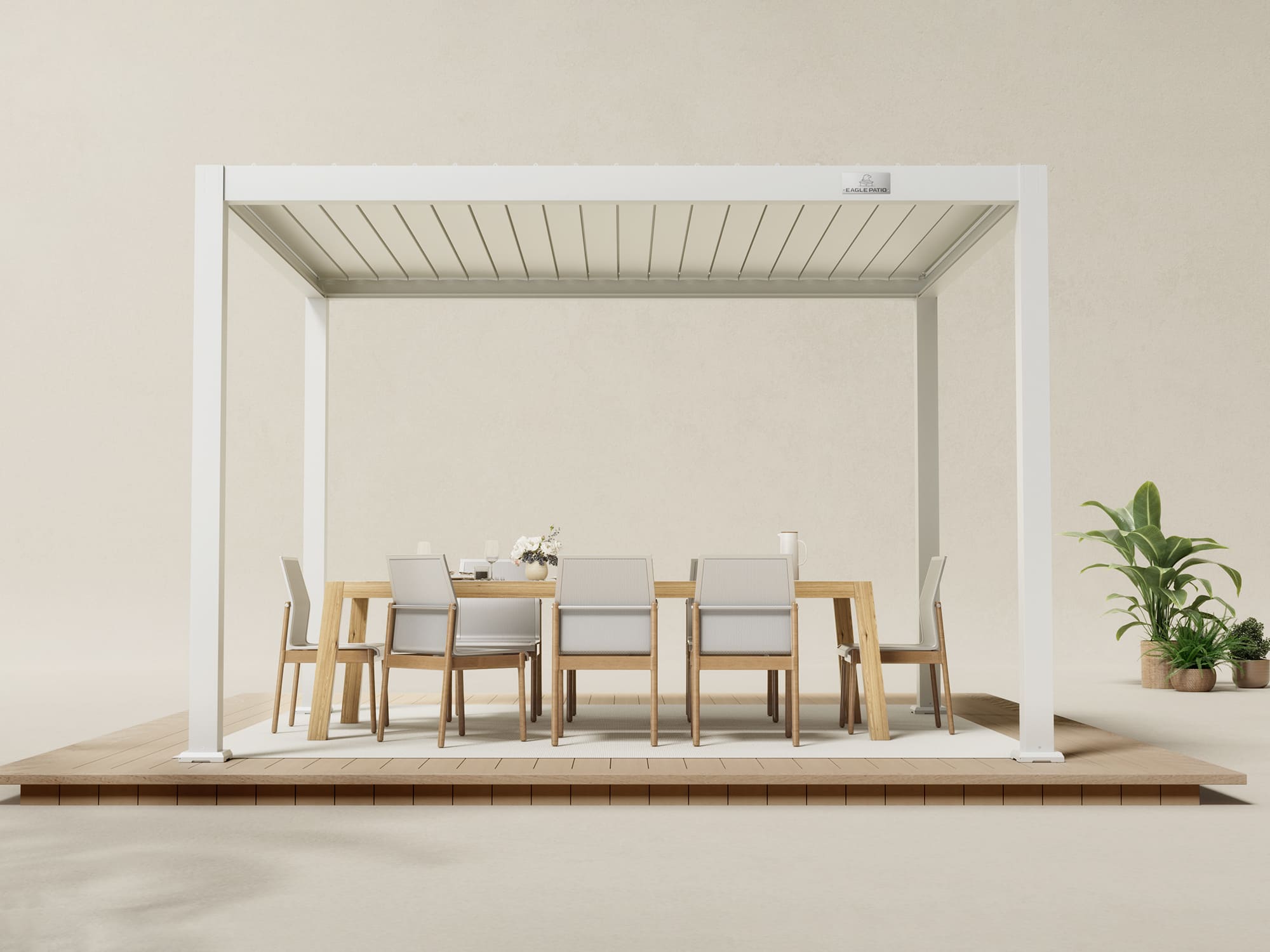

Louvre L5

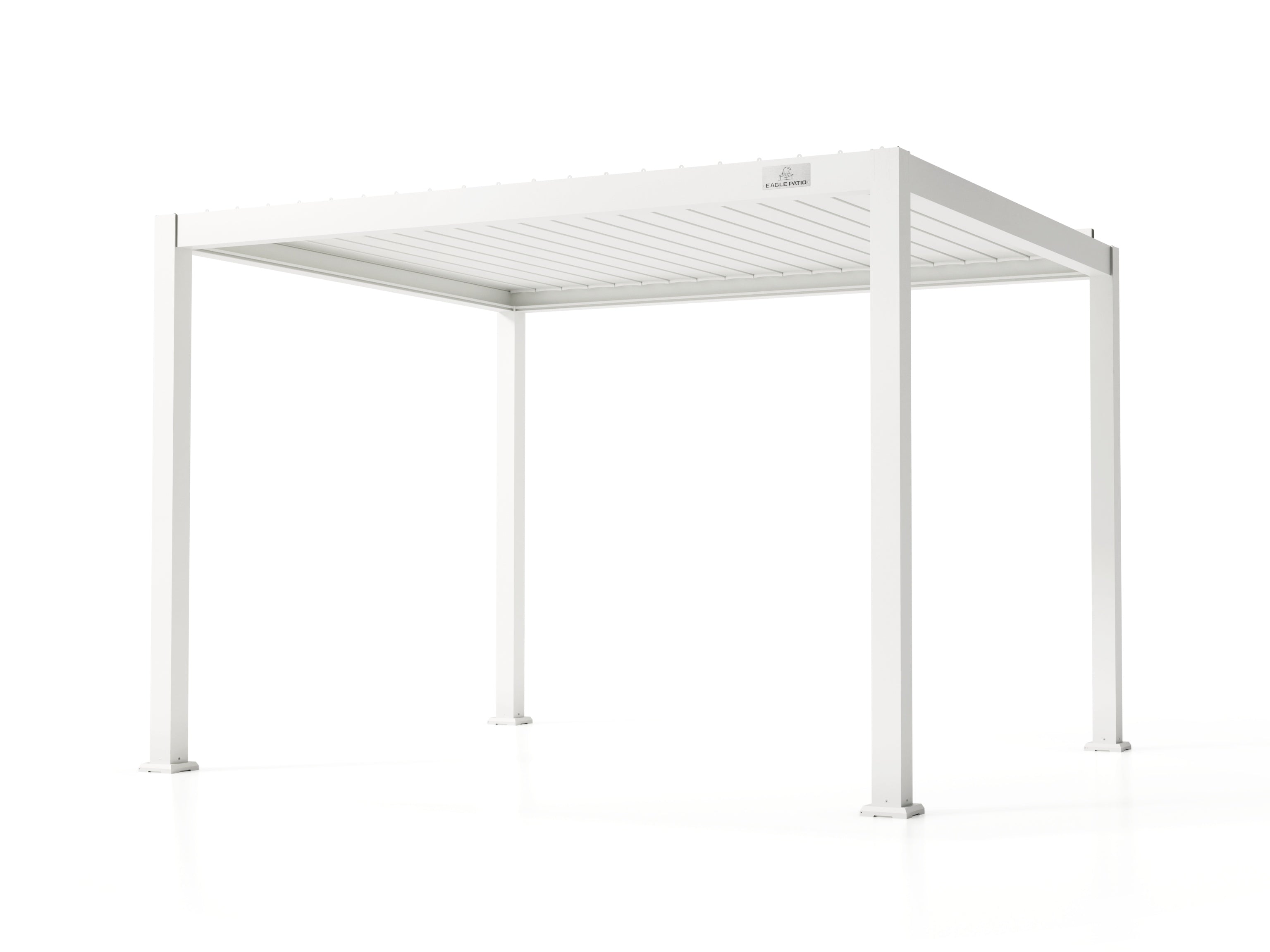

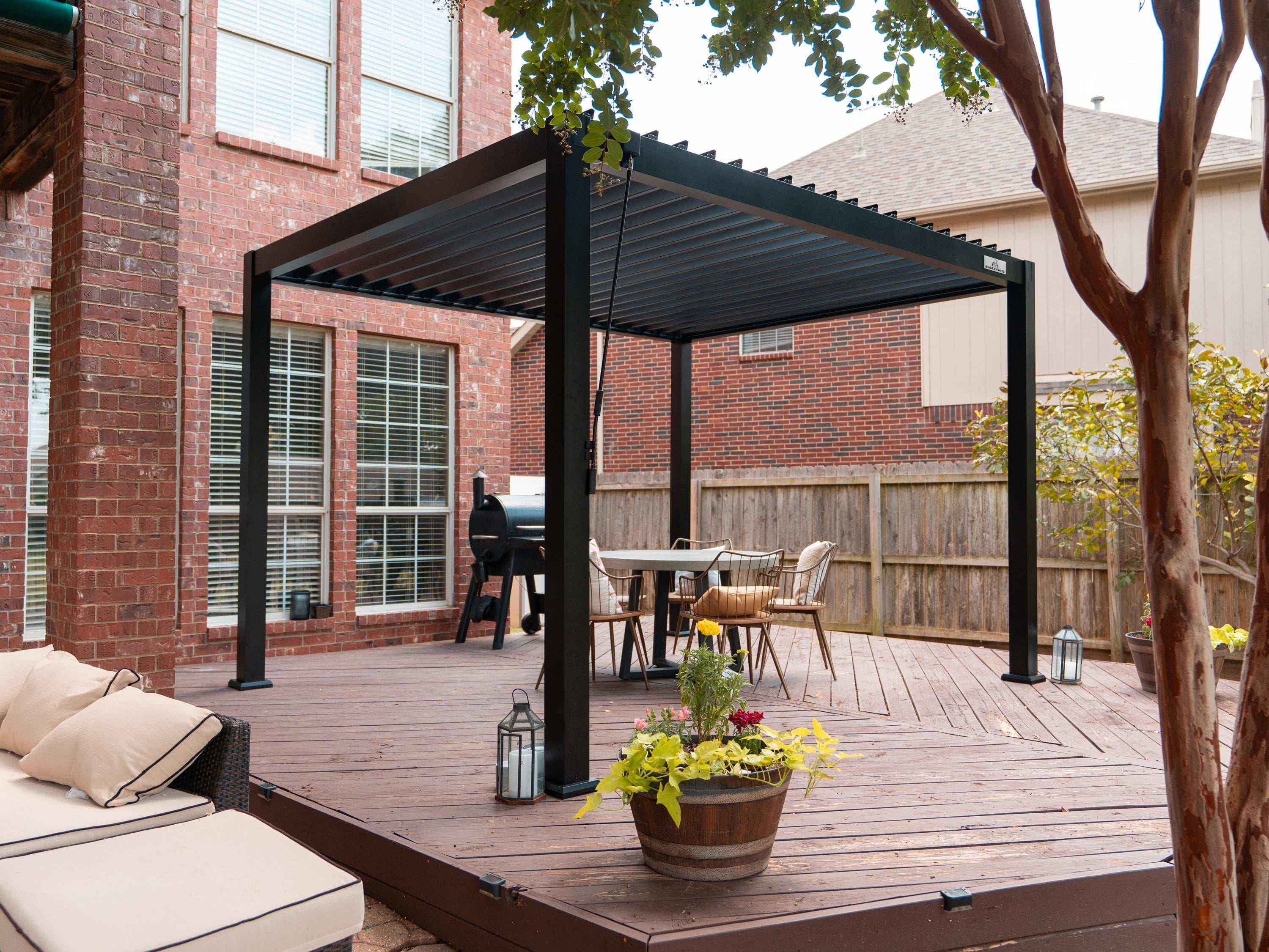

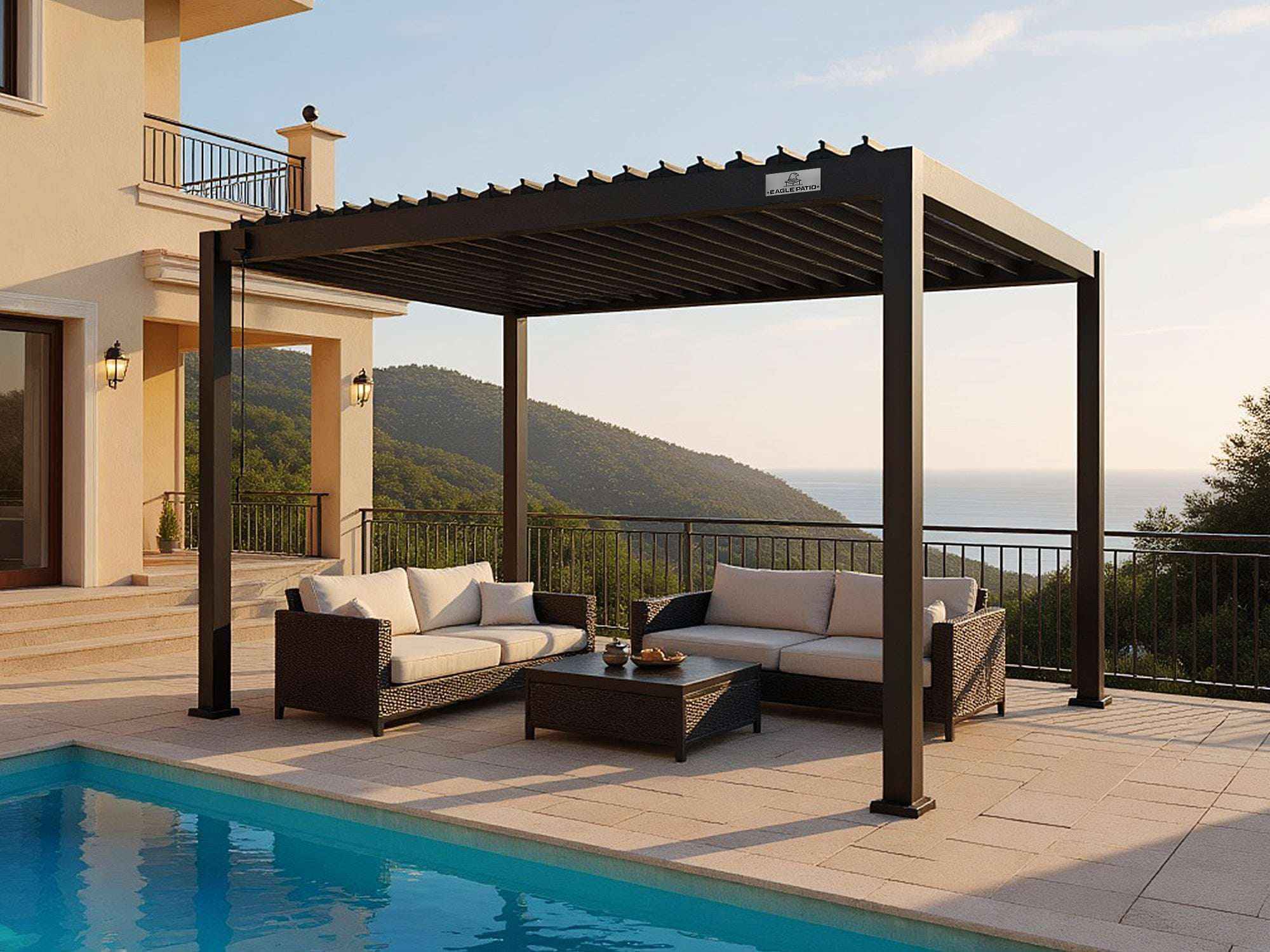

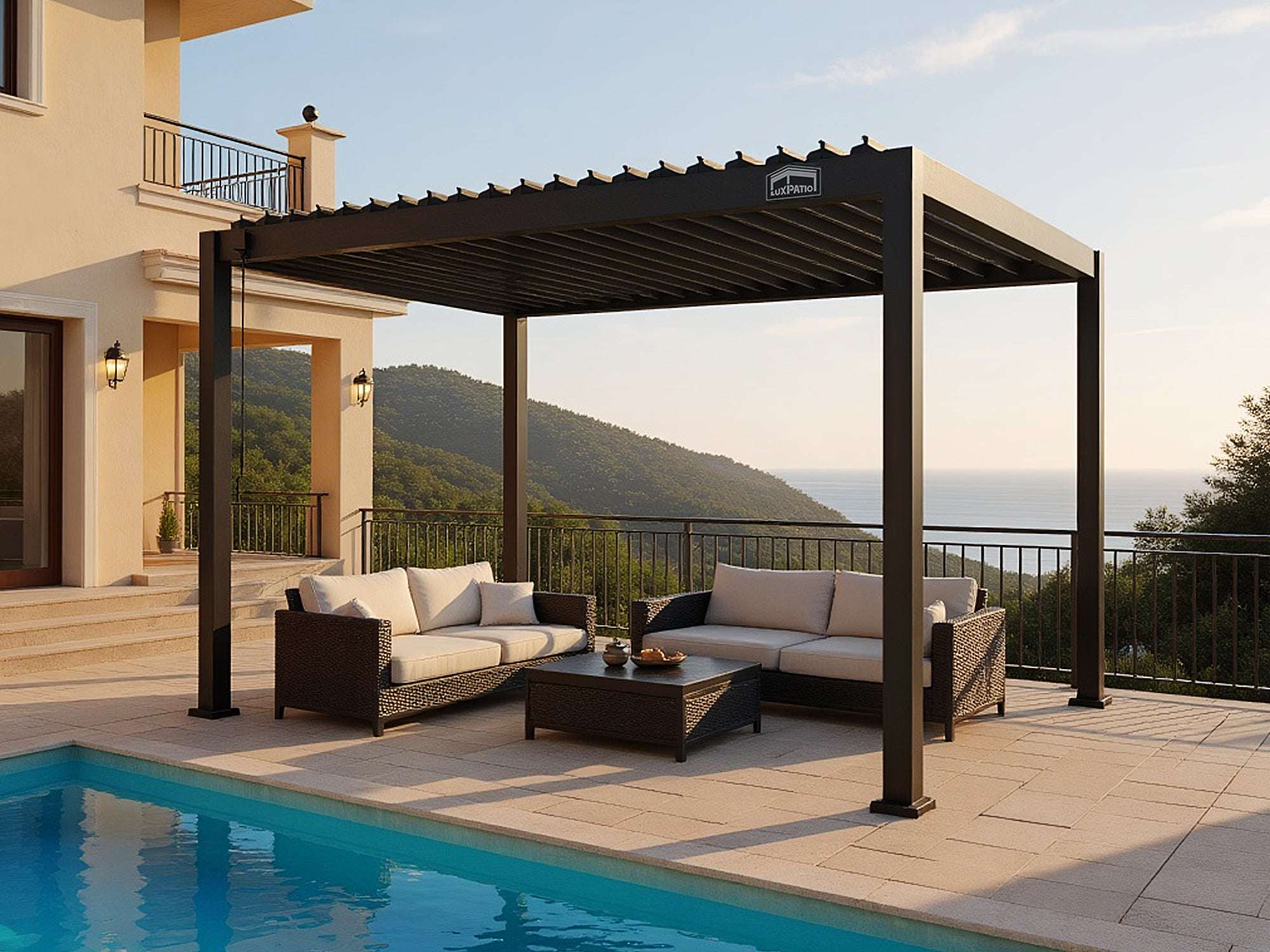

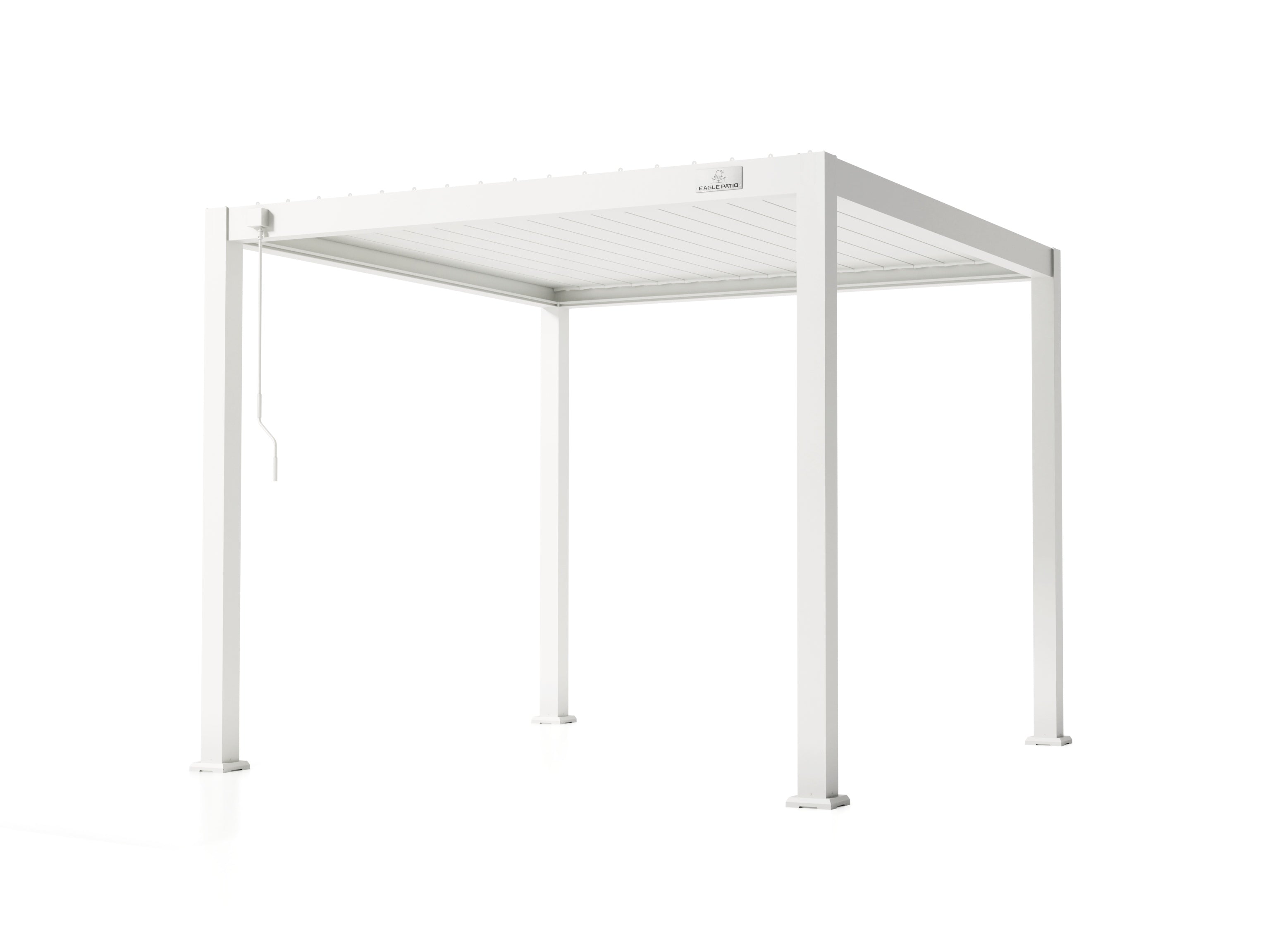

Aluminum Louvered Pergola

Name: Aluminum Louvered Pergola
Rating: 5.0 (13 reviews)

Save $2,440.00

$3,660.00

$3,660.00 ~~$6,100.00~~

Size: 10‘ x 10’

10‘ x 10’ 10‘ x 12’ 12‘ x 12’

Roof Control: Manual Roof

Manual Roof Electric Roof & LED Lighting

Color: Black

Hassle-Free

Professional Assembly Expert installation by certified team

+ $980.00

German Craft

Precision Quality

48H Shipping

Fast Dispatch

Sustainable

Premium Aluminum

12Y Warranty

Quality Assurance

Features

All-Aluminum Construction with AkzoNobel Interpon® Coatings
Built with high-grade 6063 T5 aluminum and finished with industry-leading AkzoNobel Interpon® powder coating, this pergola offers superior resistance to corrosion, fading, and peeling—ensuring long-lasting durability and a sleek, refined look.

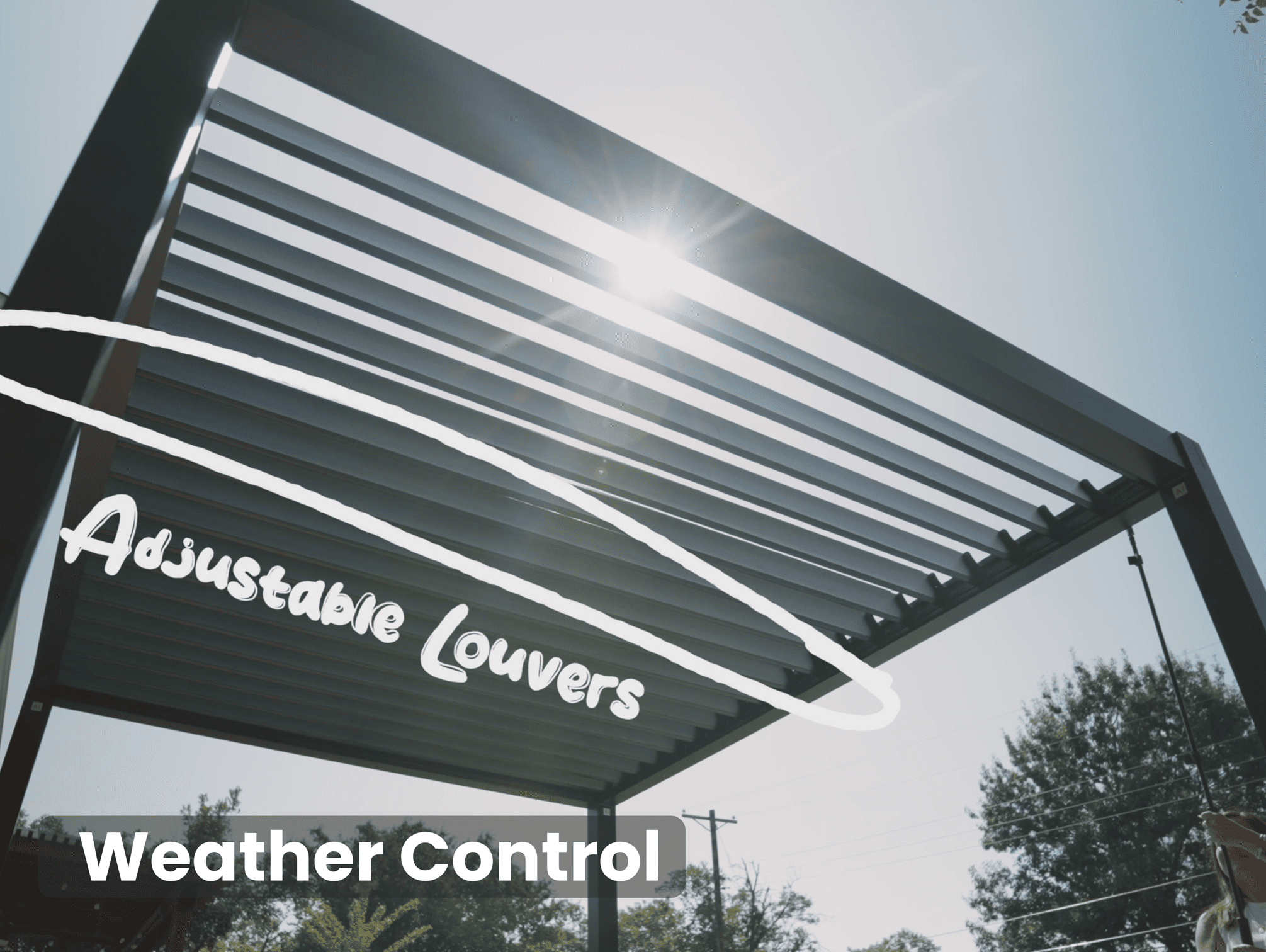

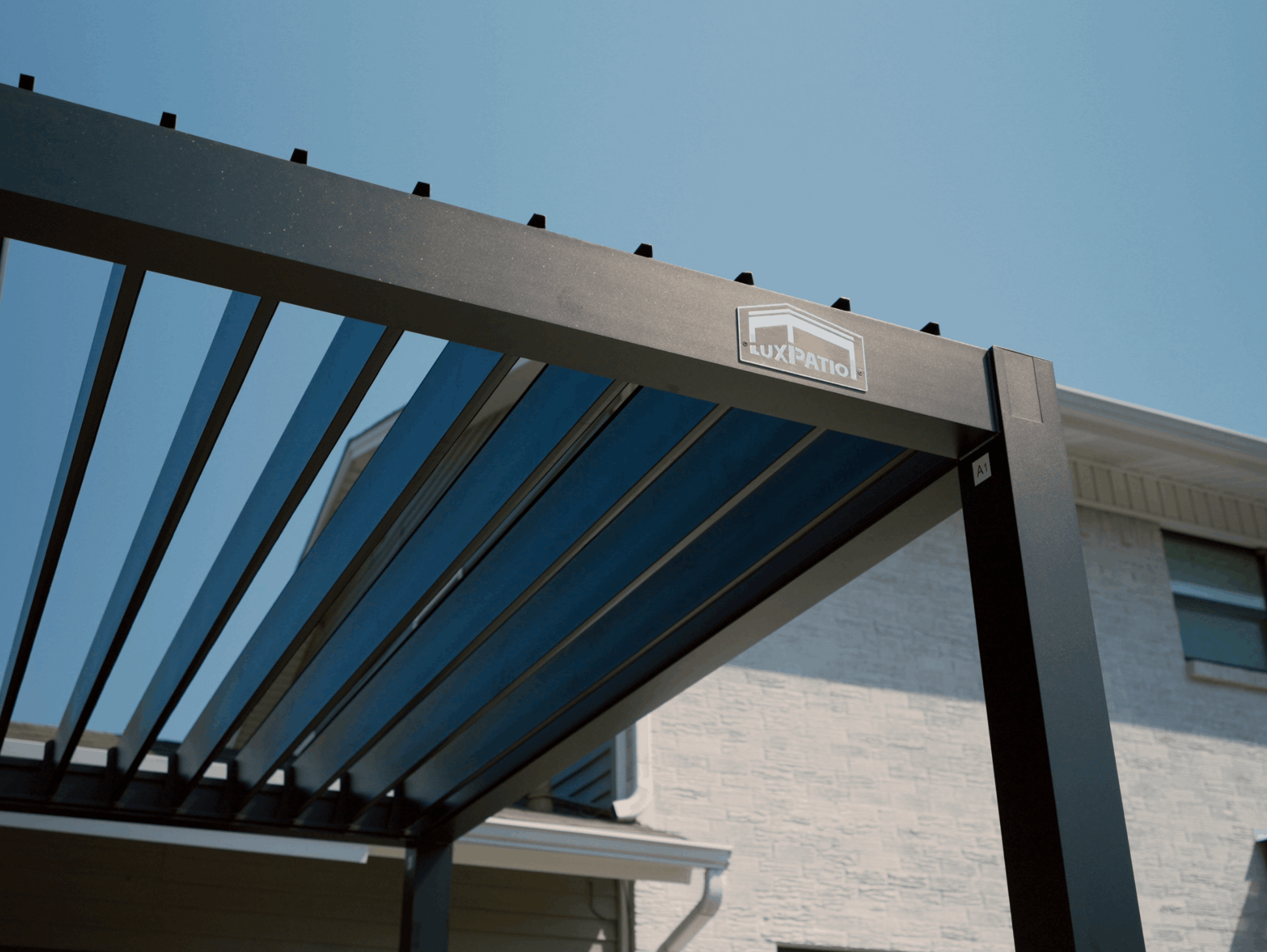

Manually Adjustable Louvers
Tilt the louvers open for sunlight and airflow, or close them for full shade and rain protection. Louvers are controlled by a smooth-turn hand crank.
Integrated Drainage System
Rainwater flows from the louvers into hidden gutter channels and down through the posts, keeping the interior dry and storm-ready.
Flexible Size Options

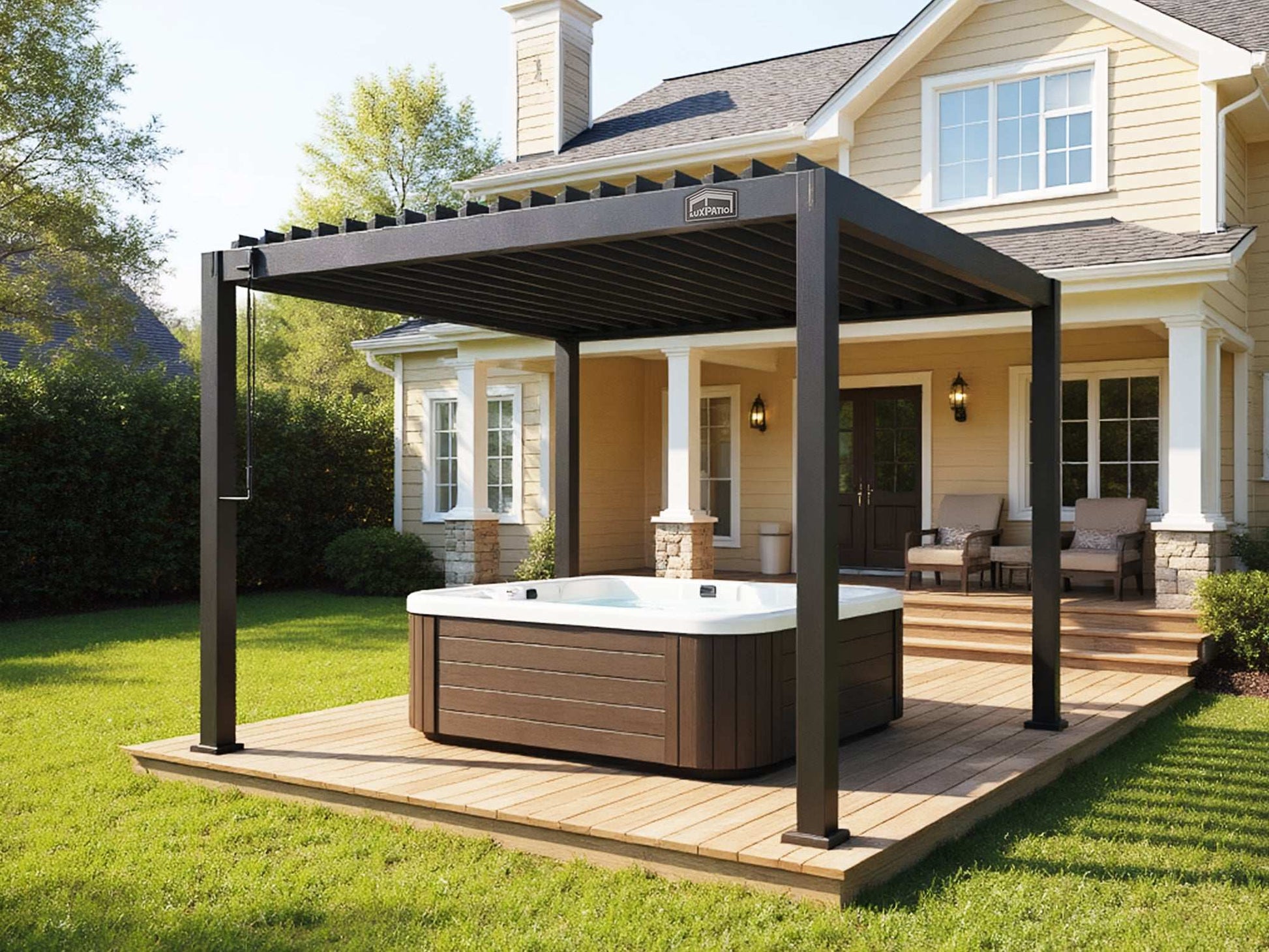

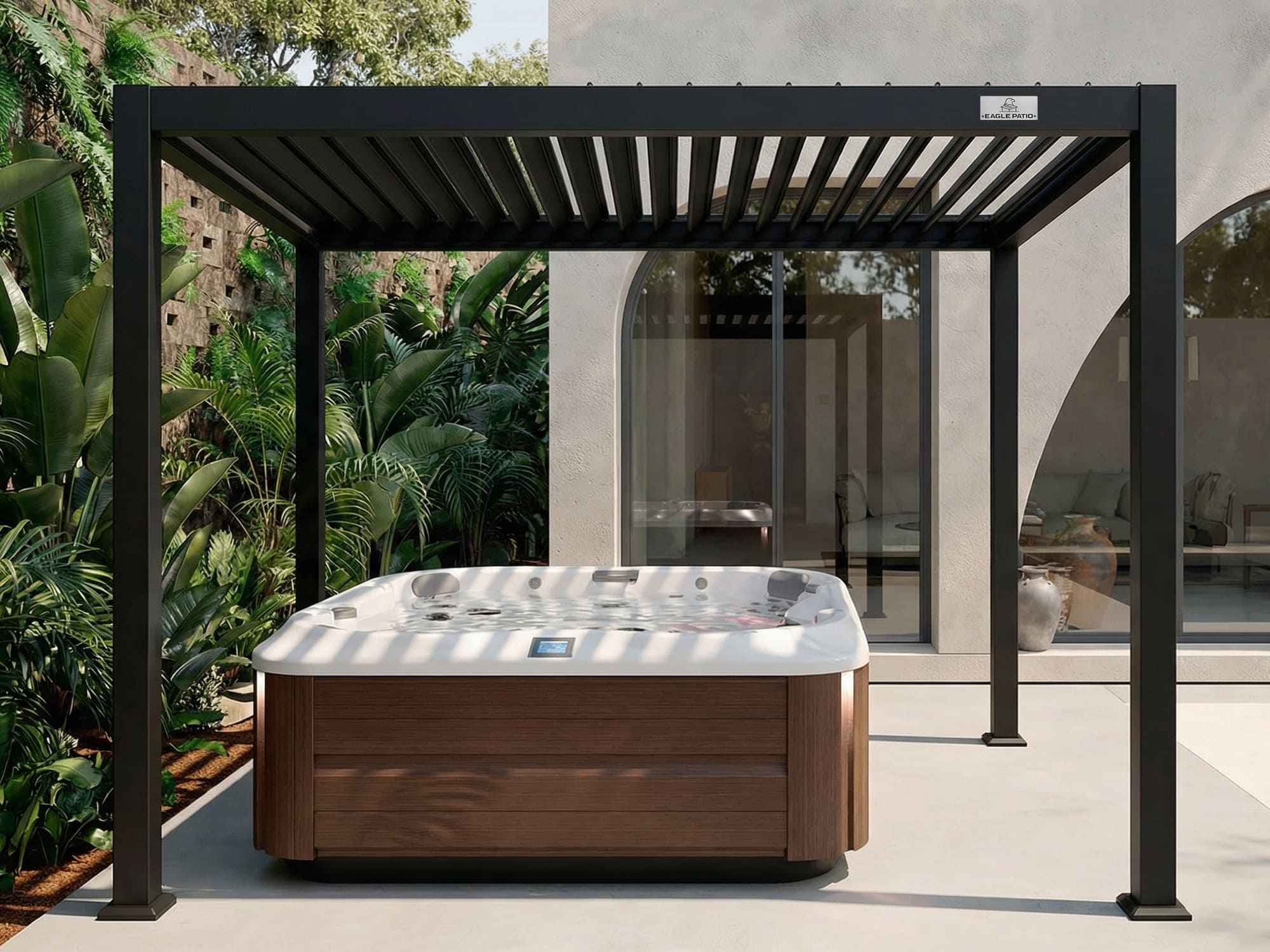

Choose from 3 backyard-friendly sizes, whether you’re shading a lounge zone, patio, or hot tub.
DIY-Friendly Assembly
Ships in clearly labeled boxes. With two or more competent adults can assemble the pergola in 2-4 hours.

Details

Turn your patio into a year-round outdoor space with the EaglePatio (formerly LuxPatio) Louvre 5 Aluminum Pergola. Crafted from 6063 T5 high-grade aluminum and finished with a premium industry-leading AkzoNobel Interpon® powder coating, it resists rust, fading, and peeling, with no need for repainting or refinishing. Built for long-term performance, rain or shine.

Choose from a manually operated roof or an electric version with integrated LED lighting. The adjustable louvers let you control light, airflow, and coverage with ease, whether you’re creating midday shade or closing up for a cozy dinner under the stars.

A built-in drainage system guides rainwater smoothly from the louvers through the beams and down the posts so that the area underneath stays dry and ready to use. Multiple size options make it easy to fit the Louvre 5 into your existing backyard layout, whether over a hot tub, lounge zone, or dining area.

Each pergola ships in clearly labeled boxes and is designed for easy DIY assembly with the help of two or more competent adults. With premium finishes, practical features, and flexible control, the Louvre 5 offers modern comfort in any weather.

Assembly

L5-LITE-manual-_10x10_Manual_Roof

Download

L5-PLUS-manual-_10x12_Manual_Roof

Download

L5-MAX-manual-_12x12_Manual_Roof

Download

L5-ELITE-manual-_10x10-Electric_Roof

Download

L5-EPLUS-manual-_10x12-Electric_Roof

Download

L5-EMAX-manual-_12x12-Electric_Roof

Download

Designed for easy setup, the Elite Pergola installs in 2–4 hours two or more competent adults. Clear instructions and labeled parts make it simple to bring modern comfort to your backyard.

Dimensions

Packaging & Delivery

We’re happy to provide free shipping on all Louvre L5 orders. Here’s what you can expect for your delivery:

Louvre L5 Models: Delivered by truck and is expected to arrive within 7–15 days after dispatch.

Our team will reach out to schedule a delivery time that suits you, and your EaglePatio (formerly LuxPatio) boxes will be carefully delivered to your doorstep.

Warranty

A EaglePatio (formerly LuxPatio) product is covered by a limited-tiered warranty:

12-Year Warranty: Applies to structural components like posts, base plates, and beams.
5-Year Warranty: Covers movable parts, including louvers, hand cranks, and mechanisms.
2-Year Warranty: Applies to accessories and electrical components.

Learn more

What's in the box

Aluminum Louvered Pergola (10'x10') - 5 Boxes Total

Box 1: 110.24" x 11.81" x 11.42", 94.14 lbs - 4 posts + 1 accessories box
Box 2: 118.9" x 14.96" x 7.48", 97.22 lbs - 4 crossbeams
Box 3: 119.69" x 16.93" x 9.45", 95.9 lbs - 5 louvers + 1 hand crank
Box 4: 119.69" x 16.93" x 9.45", 95.68 lbs - 6 louvers
Box 5: 119.69" x 16.93" x 9.45", 92.37 lbs - 6 louvers

Aluminum Louvered Pergola (10'x12') - 5 Boxes Total

Box 1: 110.24" x 11.81" x 11.42", 94.14 lbs - 4 posts + 1 accessories box
Box 2: 142.52" x 14.96" x 7.48", 113.43 lbs - 4 crossbeams
Box 3: 119.69" x 19.29" x 9.45", 107.14 lbs - 6 louvers + 1 hand crank
Box 4: 119.69" x 19.29" x 9.45", 107.14 lbs - 7 louvers
Box 5: 119.69" x 19.29" x 9.45", 95.9 lbs - 7 louvers

Aluminum Louvered Pergola (12'x12') - 5 Boxes Total

Box 1: 110.24" x 11.81" x 11.42", 94.14 lbs - 4 posts + 1 accessories box
Box 2: 142.52" x 14.96" x 7.48", 119.05 lbs - 4 crossbeams
Box 3: 142.52" x 19.29" x 9.45", 127.87 lbs - 6 louvers + 1 hand crank
Box 4: 142.52" x 19.29" x 9.45", 127.87 lbs - 7 louvers
Box 5: 142.52" x 19.29" x 9.45", 113.76 lbs - 7 louvers

Aluminum Louvered Pergola (Electric 10'x10') - 5 Boxes Total

Box 1: 110.24" x 11.81" x 11.42", 94.14 lbs - 4 posts + 1 accessories box
Box 2: 118.9" x 14.96" x 7.48", 97.22 lbs - 4 crossbeams
Box 3: 119.69" x 16.93" x 9.45", 92.37 lbs - 5 louvers + 1 motorized kit
Box 4: 119.69" x 16.93" x 9.45", 95.68 lbs - 6 louvers
Box 5: 119.69" x 16.93" x 9.45", 95.68 lbs - 6 louvers

Aluminum Louvered Pergola (Electric 10'x12') - 5 Boxes Total

Box 1: 110.24" x 11.81" x 11.42", 94.14 lbs - 4 posts + 1 accessories box
Box 2: 142.52" x 14.96" x 7.48", 113.43 lbs - 4 crossbeams
Box 3: 119.69" x 19.29" x 9.45", 119.49 lbs - 6 louvers + 1 motorized kit
Box 4: 119.69" x 19.29" x 9.45", 107.14 lbs - 7 louvers
Box 5: 119.69" x 19.29" x 9.45", 95.68 lbs - 7 louvers

Aluminum Louvered Pergola (Electric 12'x12') - 5 Boxes Total

Box 1: 110.24" x 11.81" x 11.42", 94.14 lbs - 4 posts + accessories
Box 2: 142.52" x 15.35" x 7.48", 119.05 lbs - 4 crossbeams
Box 3: 142.52" x 19.29" x 9.45", 140.21 lbs - 6 louvers + motor kit
Box 4: 142.52" x 19.29" x 9.45", 127.87 lbs - 7 louvers
Box 5: 142.52" x 19.29" x 9.45", 113.76 lbs - 7 louvers

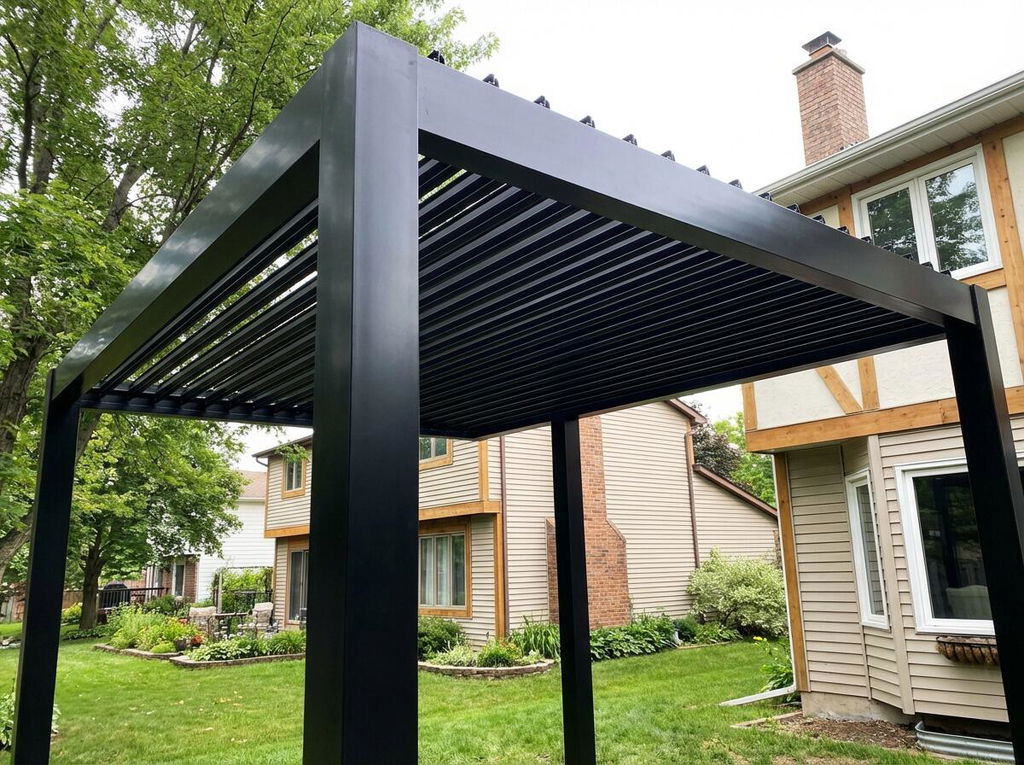

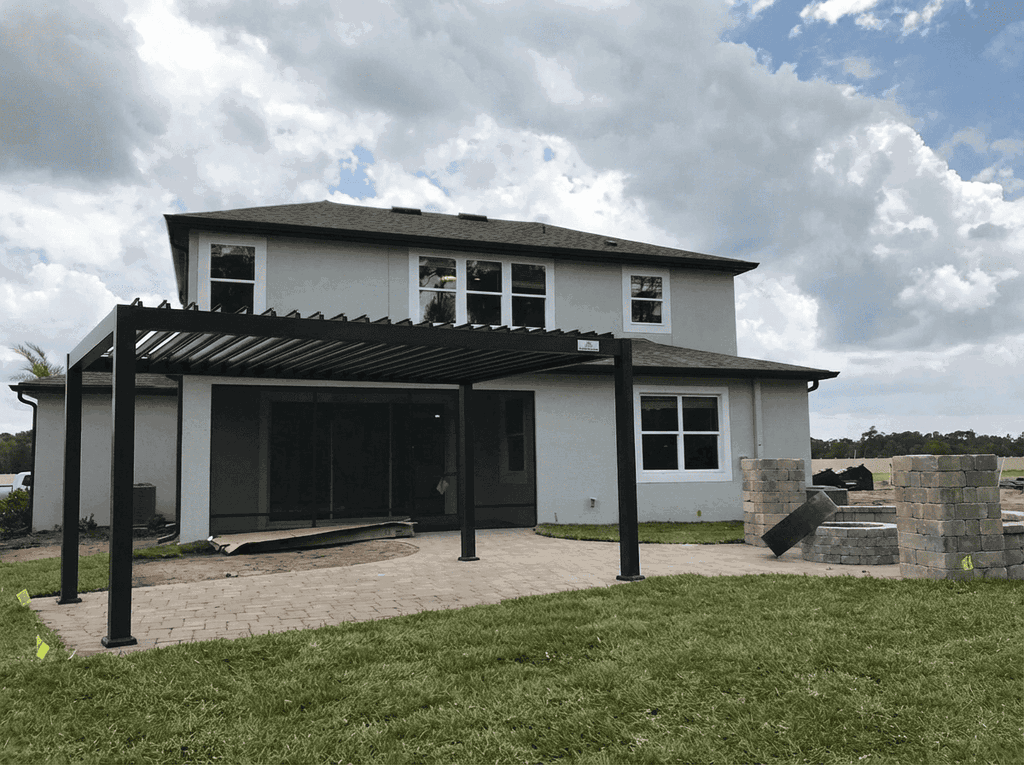

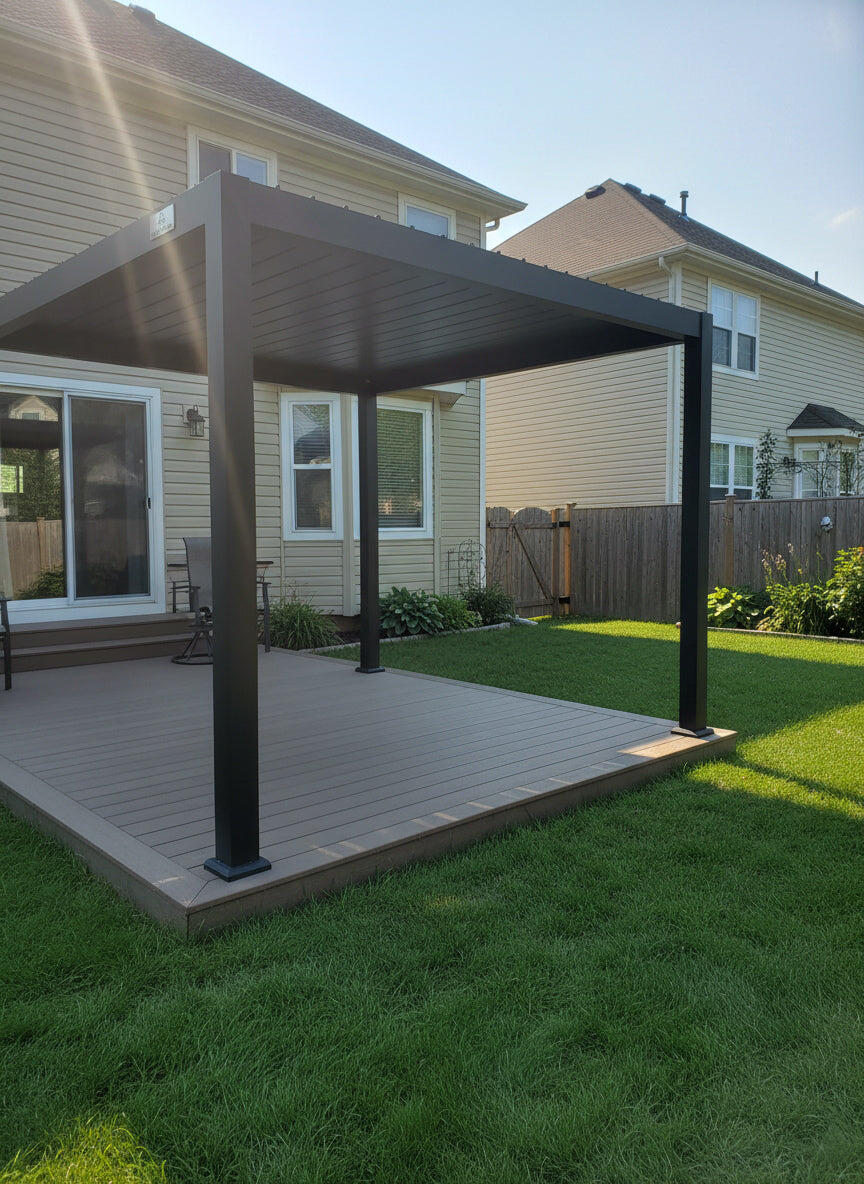

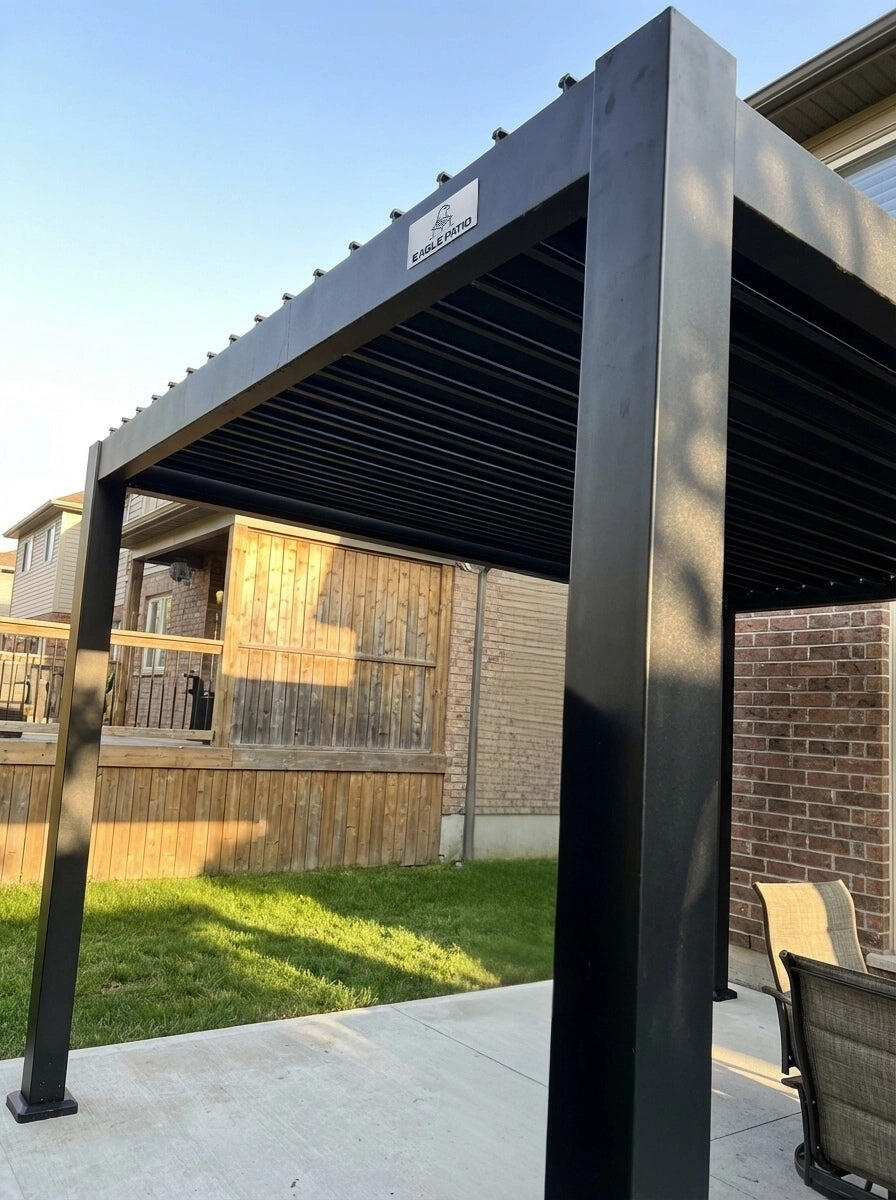

Customer Stories

Real experiences from EaglePatio (formerly LuxPatio) customers

2:35

Kyler's EaglePatio Experience

3:05

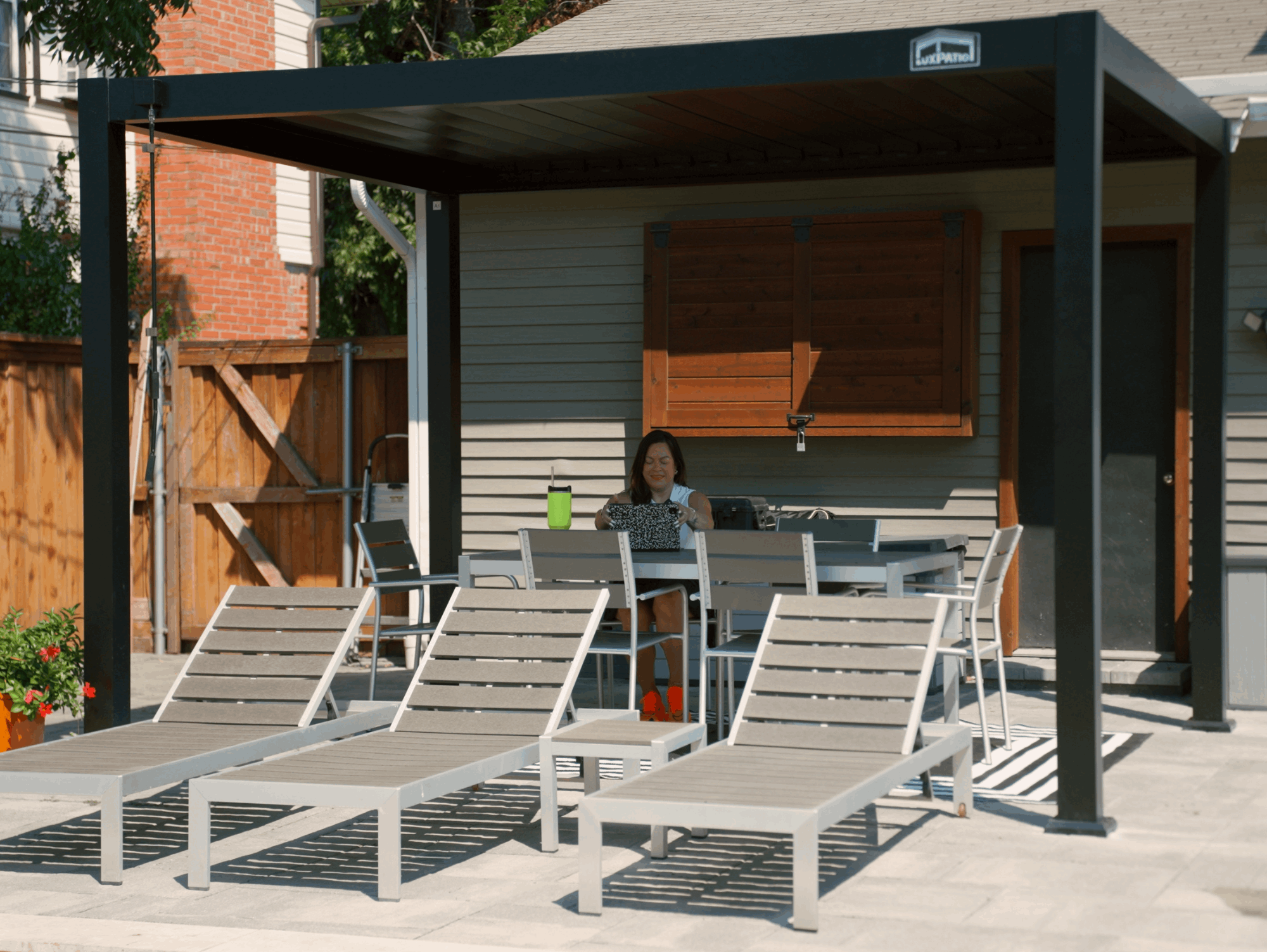

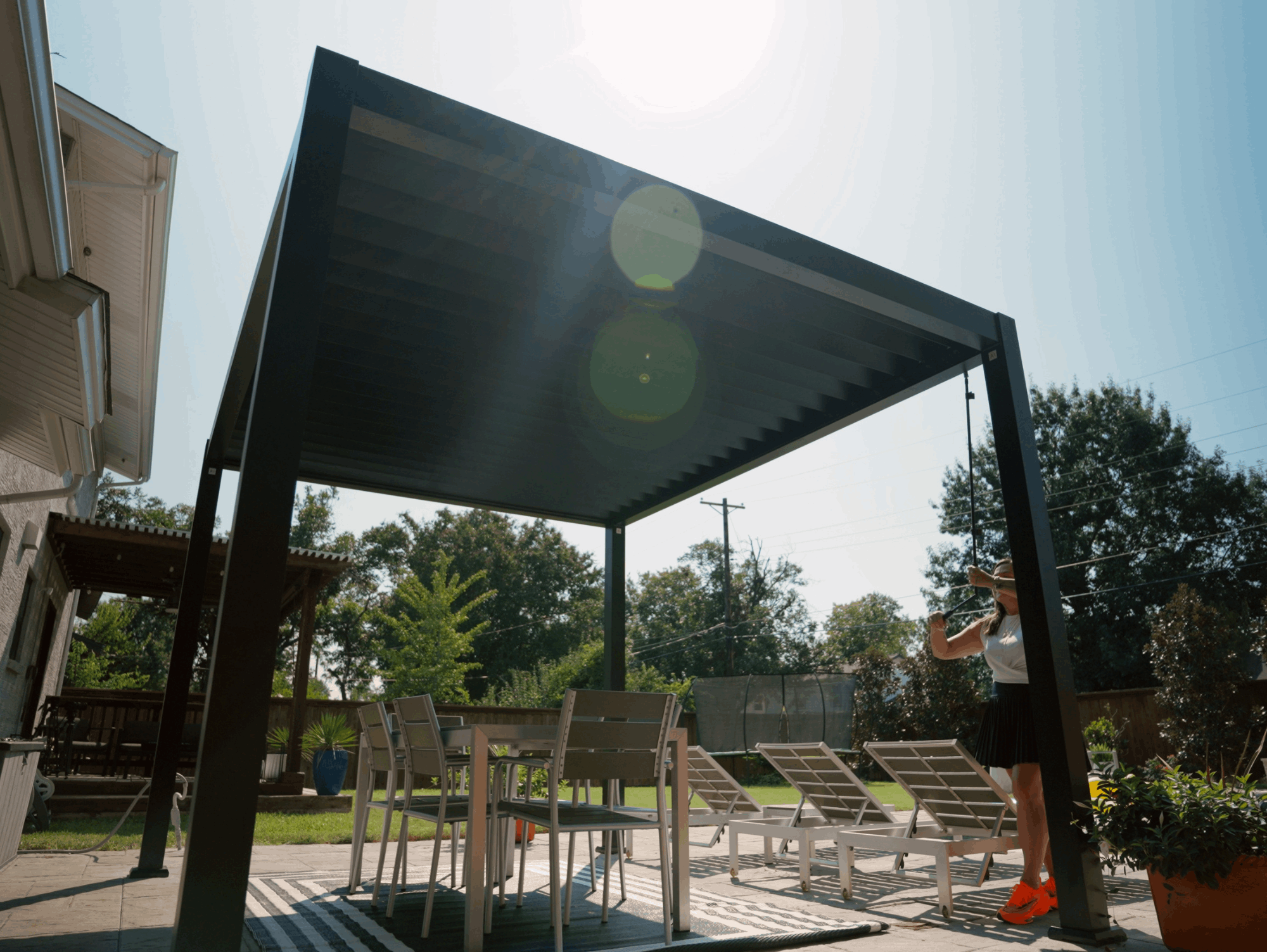

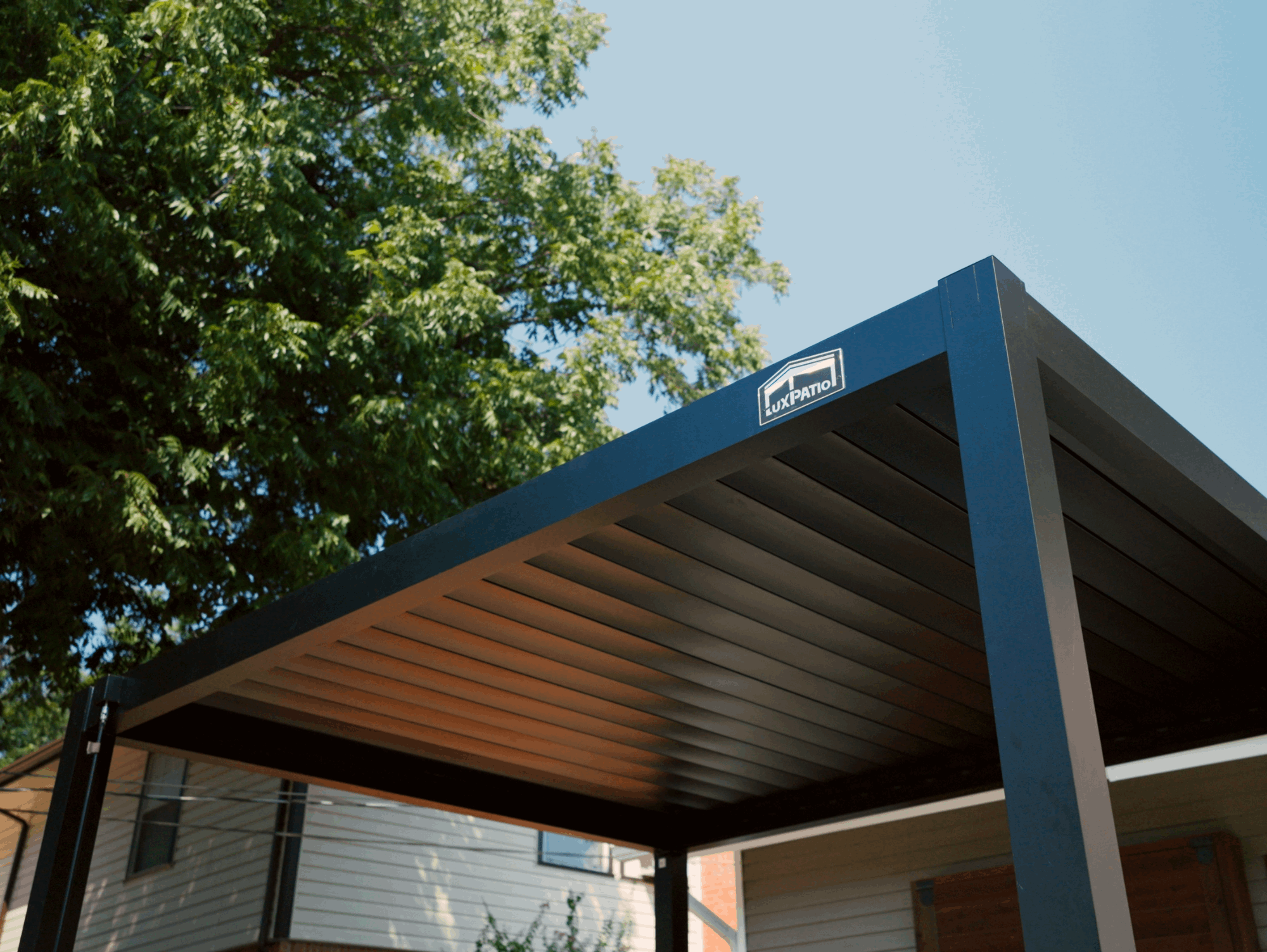

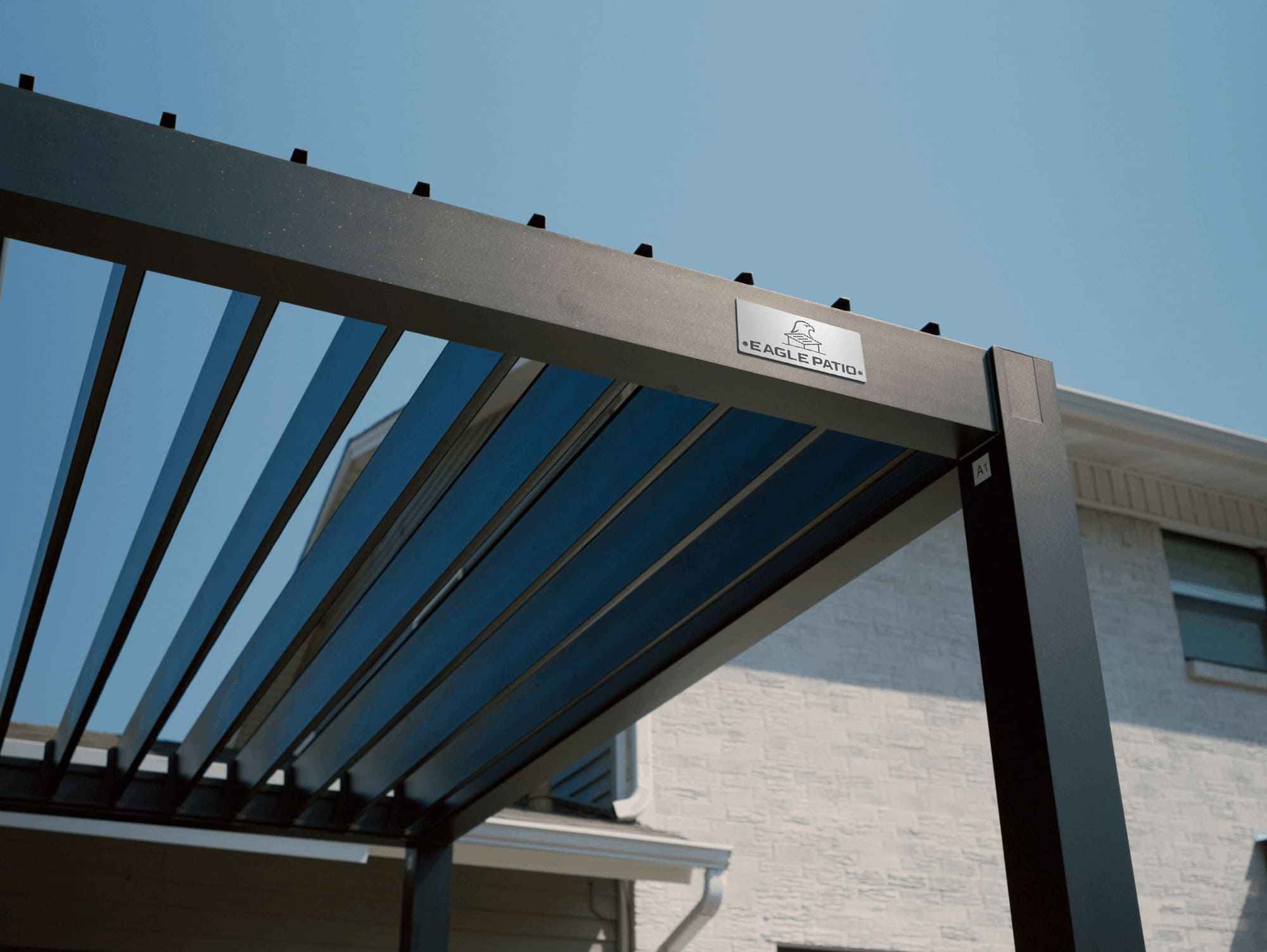

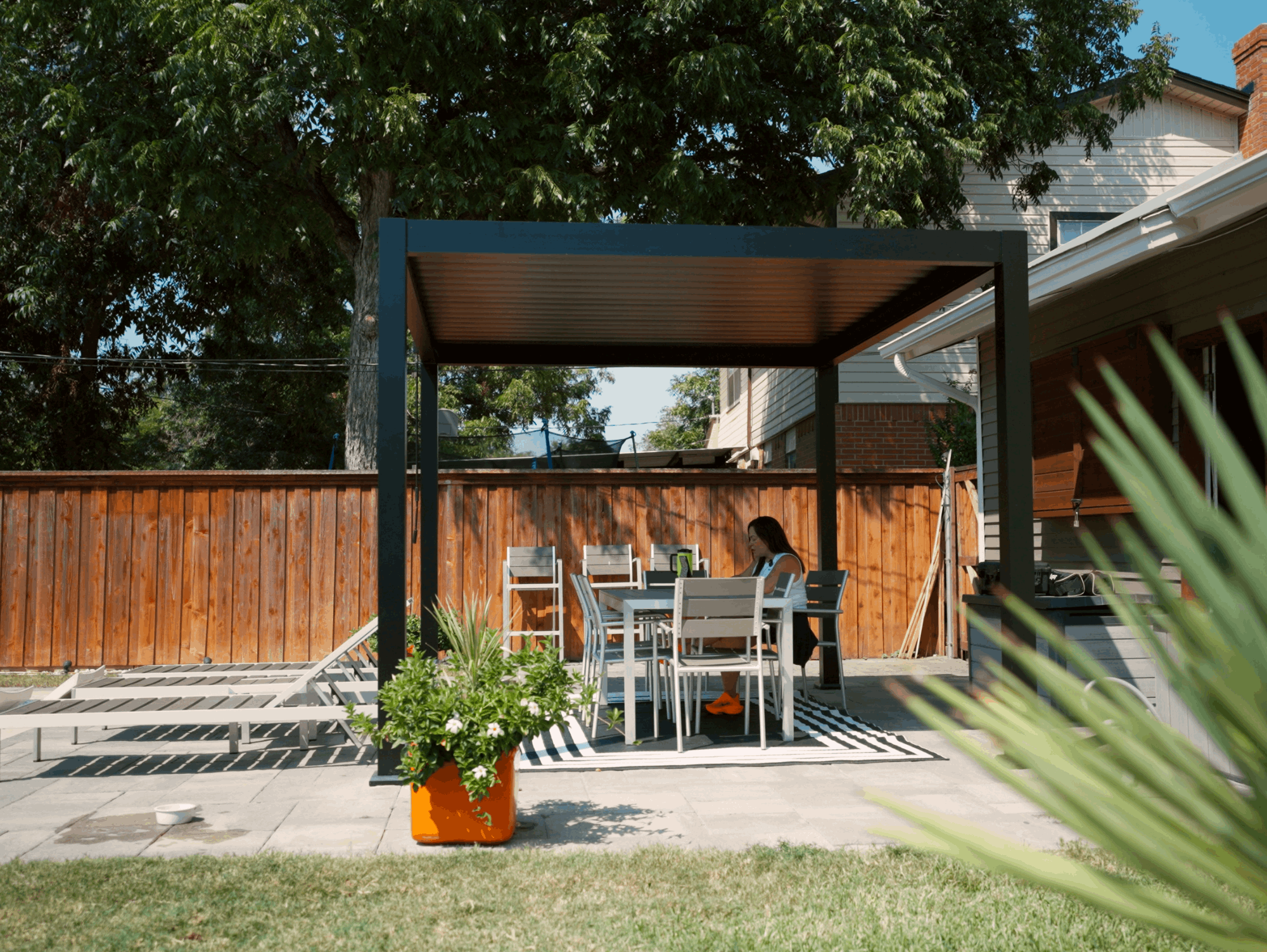

Mary's Backyard Oasis

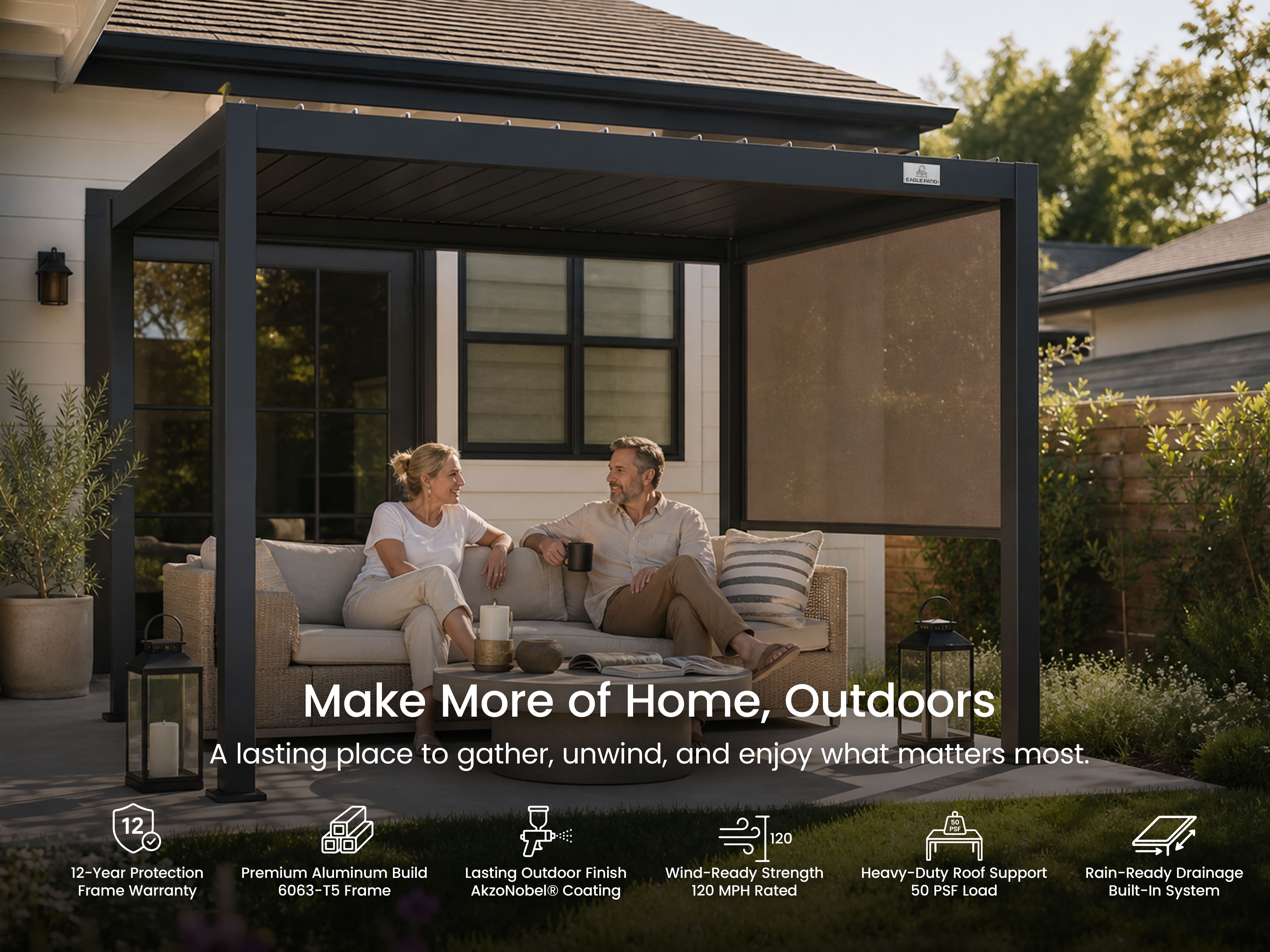

Turn Your Patio into a Year-Round Outdoor Space

Built for long-term performance, rain or shine.

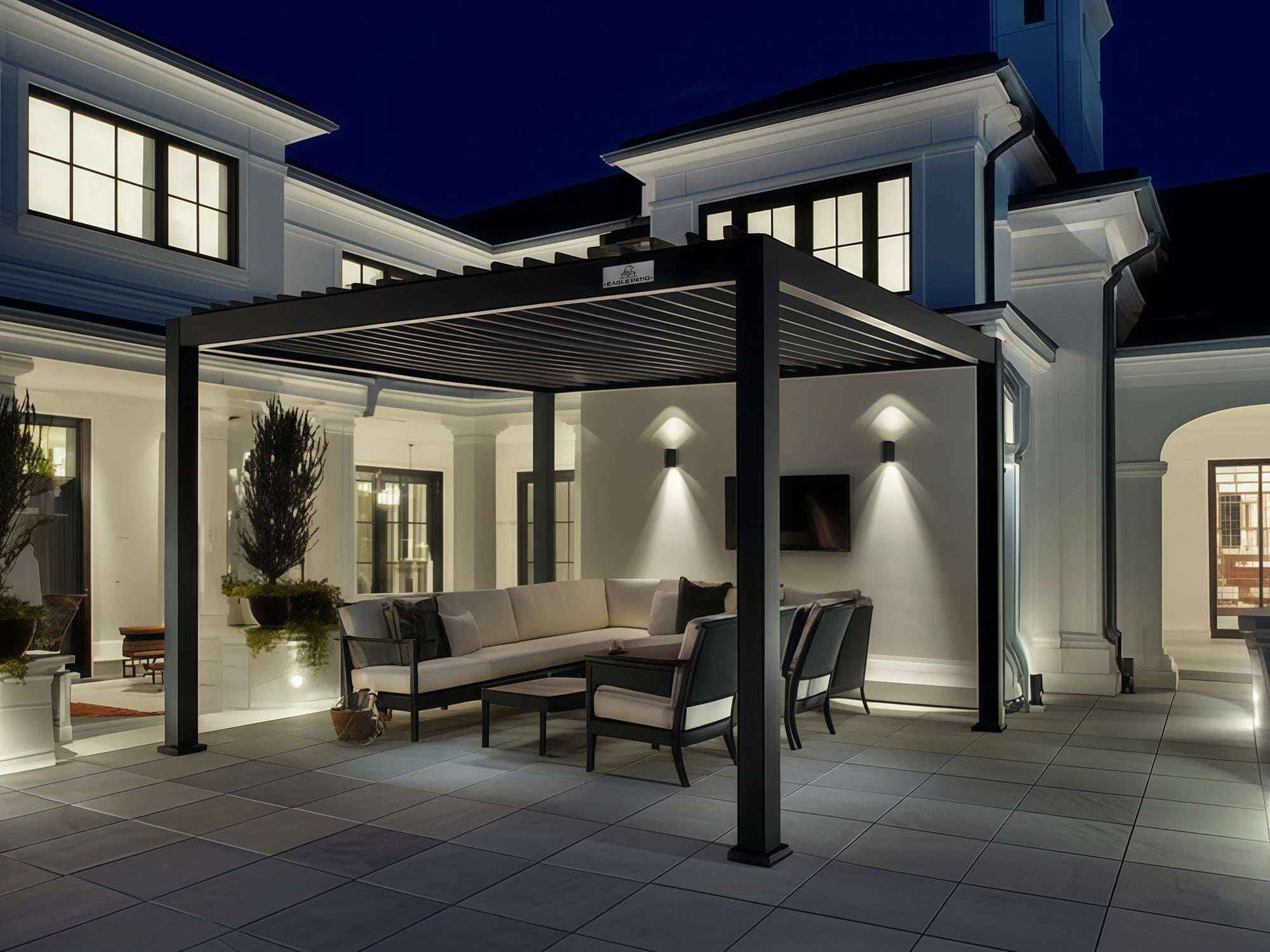

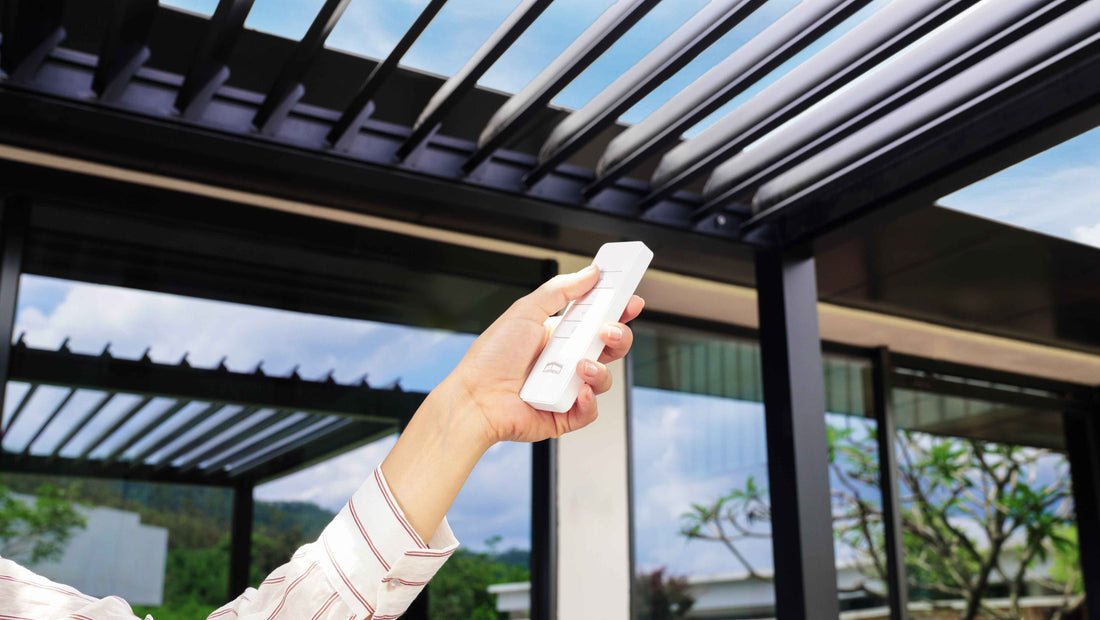

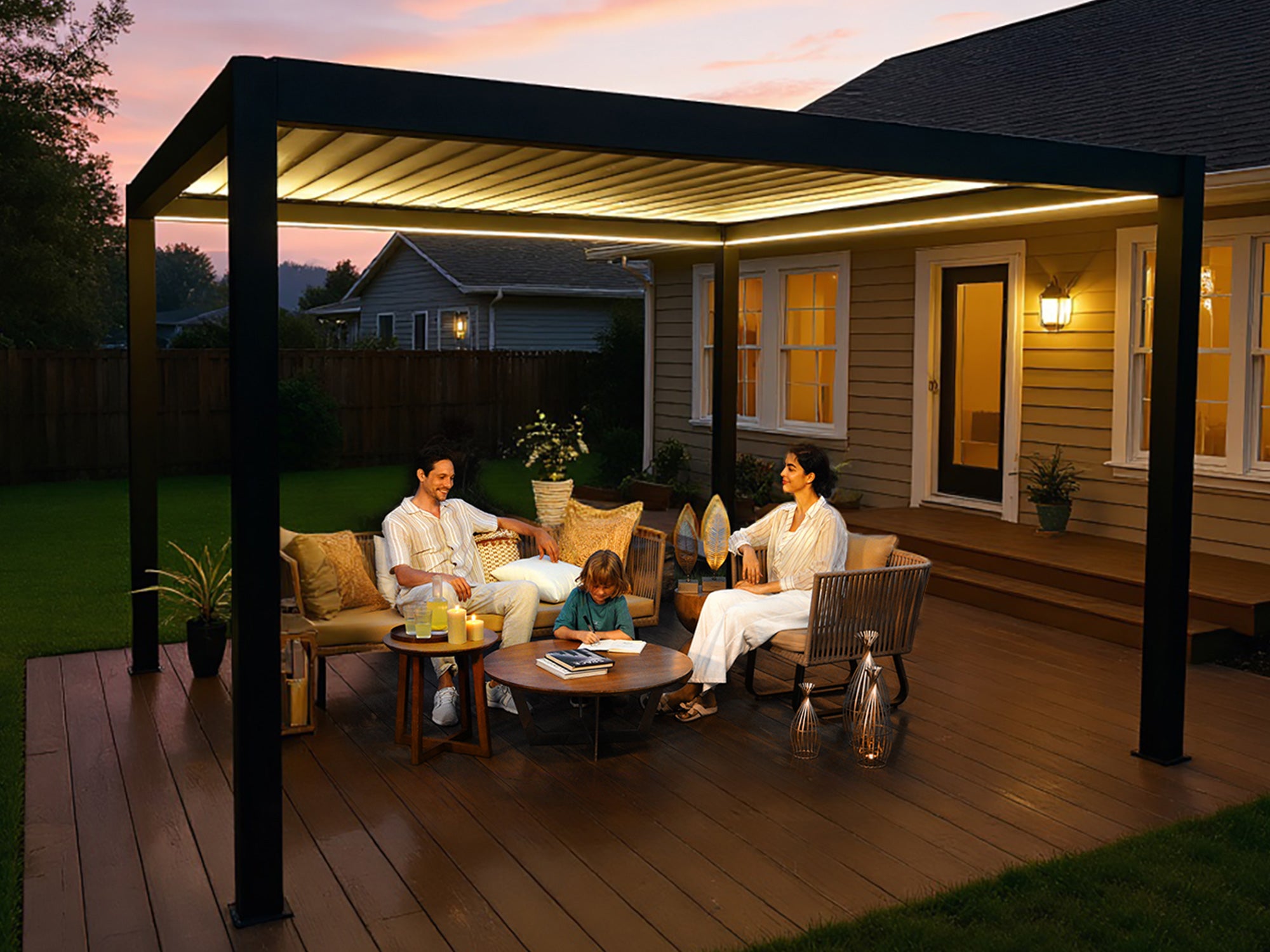

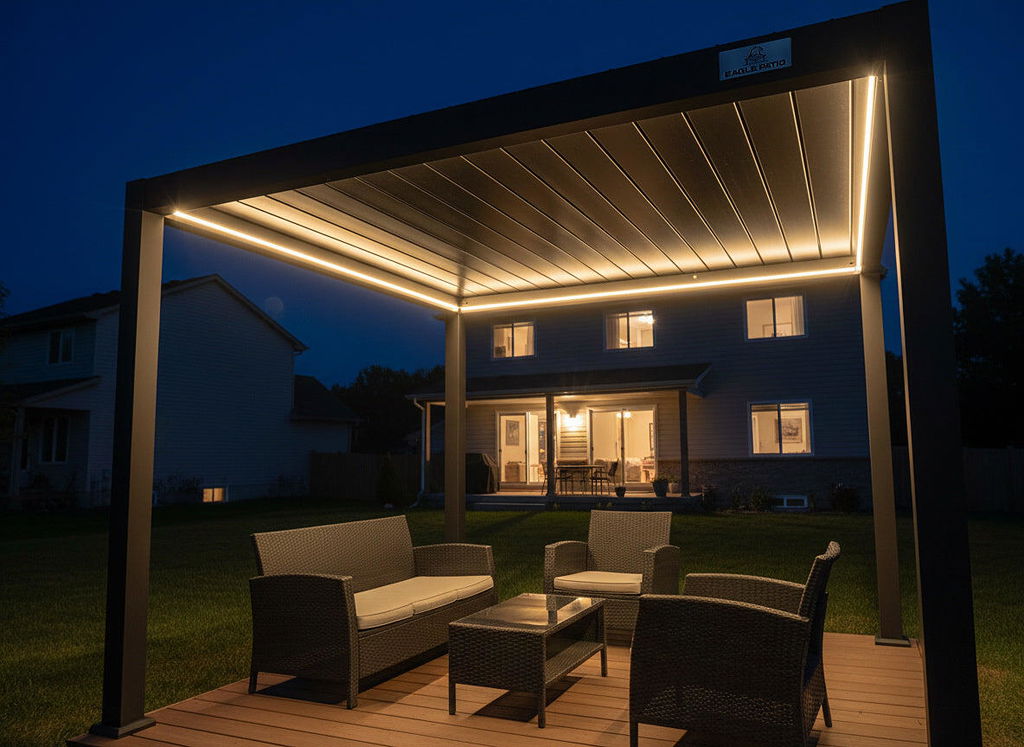

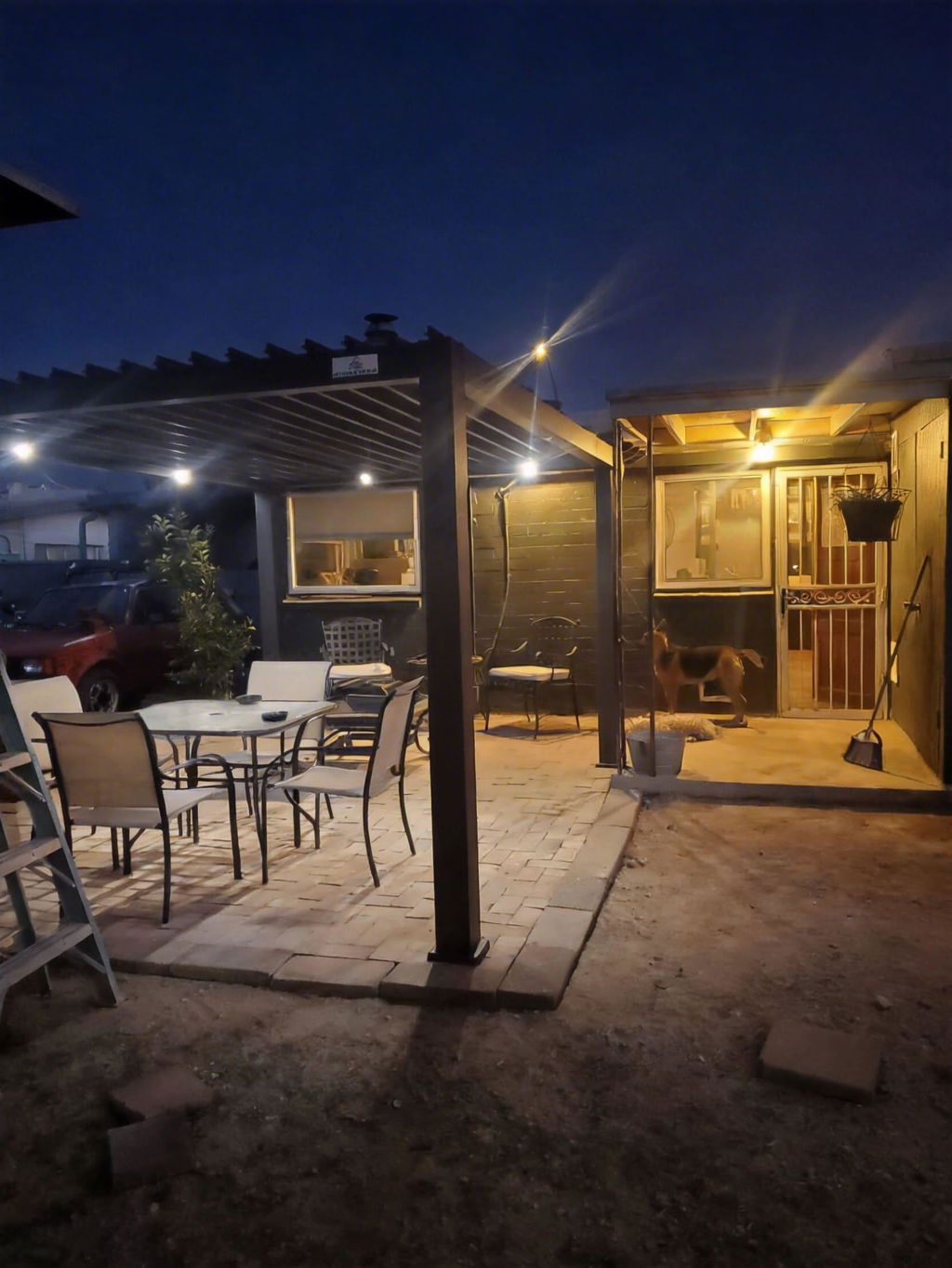

Ambient Lighting and Hidden Power

The electric model includes built-in LED lights and a remote control system, adding style and convenience to your evenings outdoors.

Built to Impress

3x Stronger Than Ever

Crafted from 6063-T5 aluminum with a 20cm internal core, engineered to be 3x stronger for superior strength.

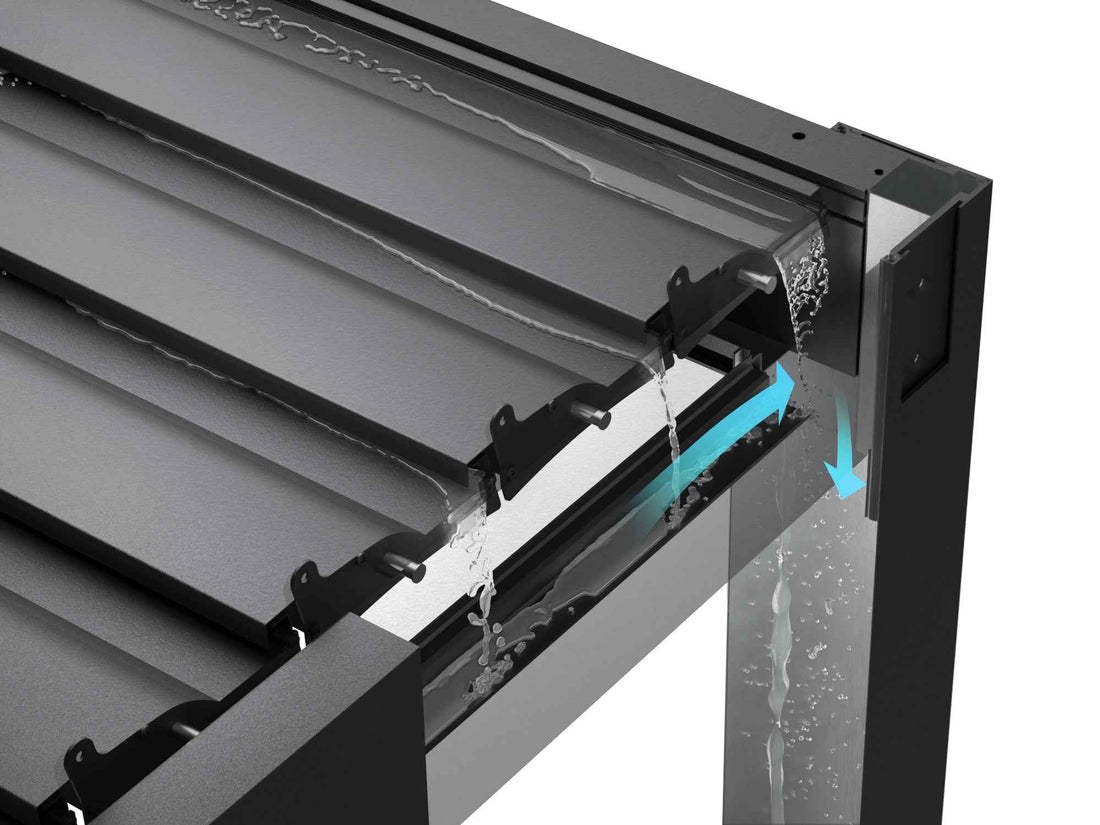

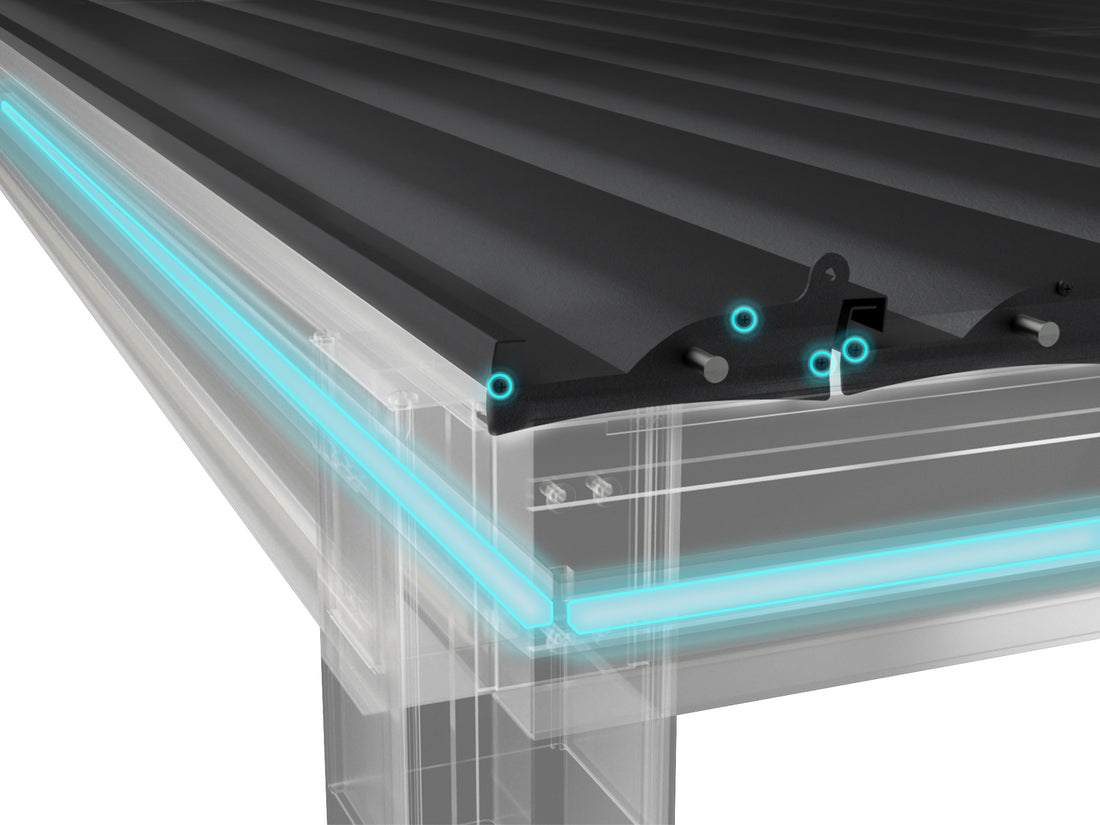

Aluminum louvered pergola with efficient water drainage system, shown in cross-section for a dry outdoor living space.

Built-In Drainage

All the water drains out of one post. Keeping you slip-free

Pre-Assembled for Easy Setup

We pre-assembled all the louvers and lighting, and with 50% fewer screws than others, setup is faster and easier than ever.

Eco-Friendly, World-Class Coating

We use AkzoNobel Interpon® powder coating for superior fade, rust, and corrosion resistance.

Unshakable Strength

Ultra-Sturdy Pillar= Greater Load-Bearing

Thicker Baseplate. Stronger Foundation

Double-Layer Louvers. Better Protection

Premium 6063-T5 Aluminum. Built to Endure

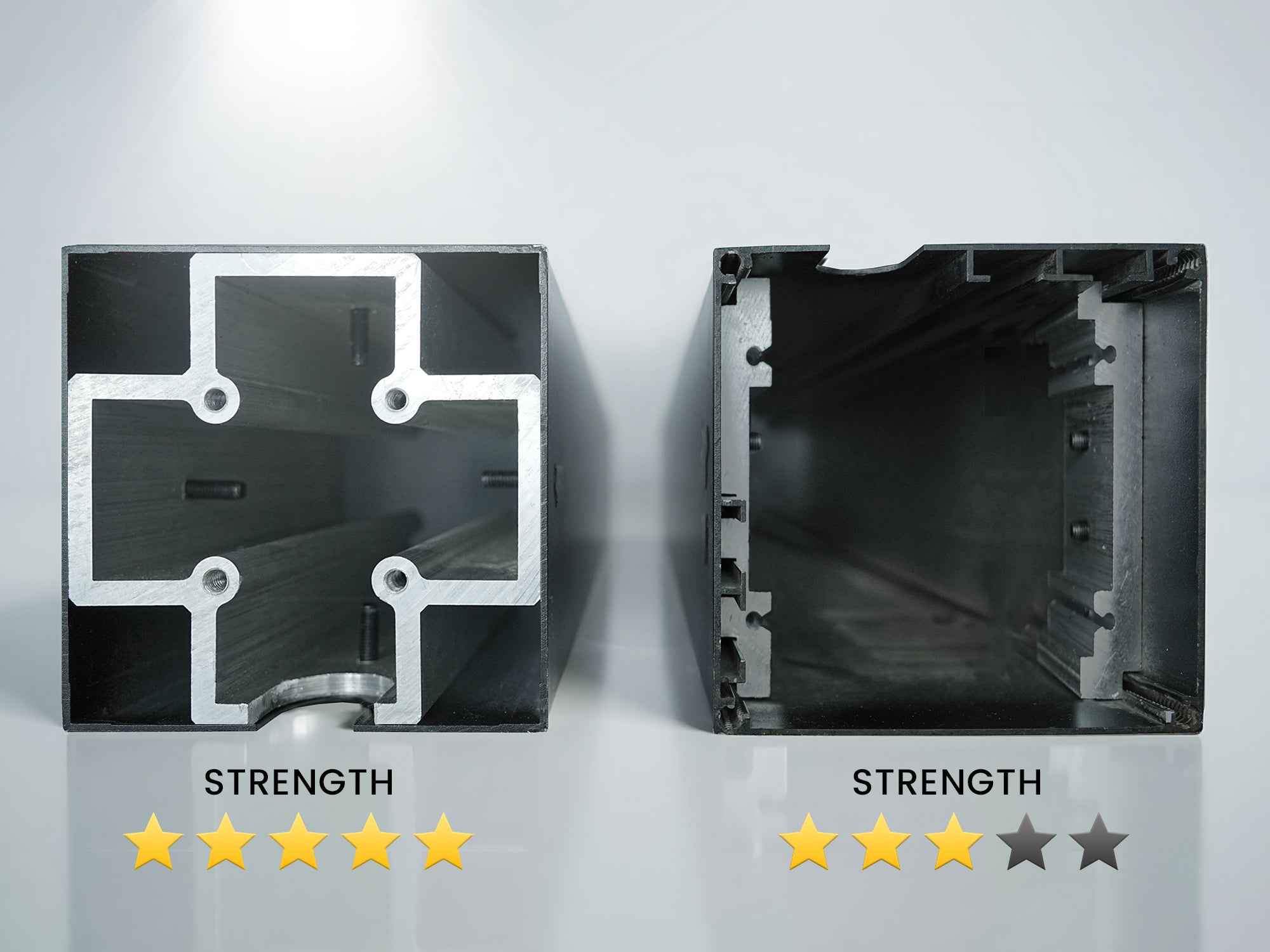

LuxPatio Grill Louvered Pergola Lite frame strength comparison, showcasing durable aluminum construction in silver and black.

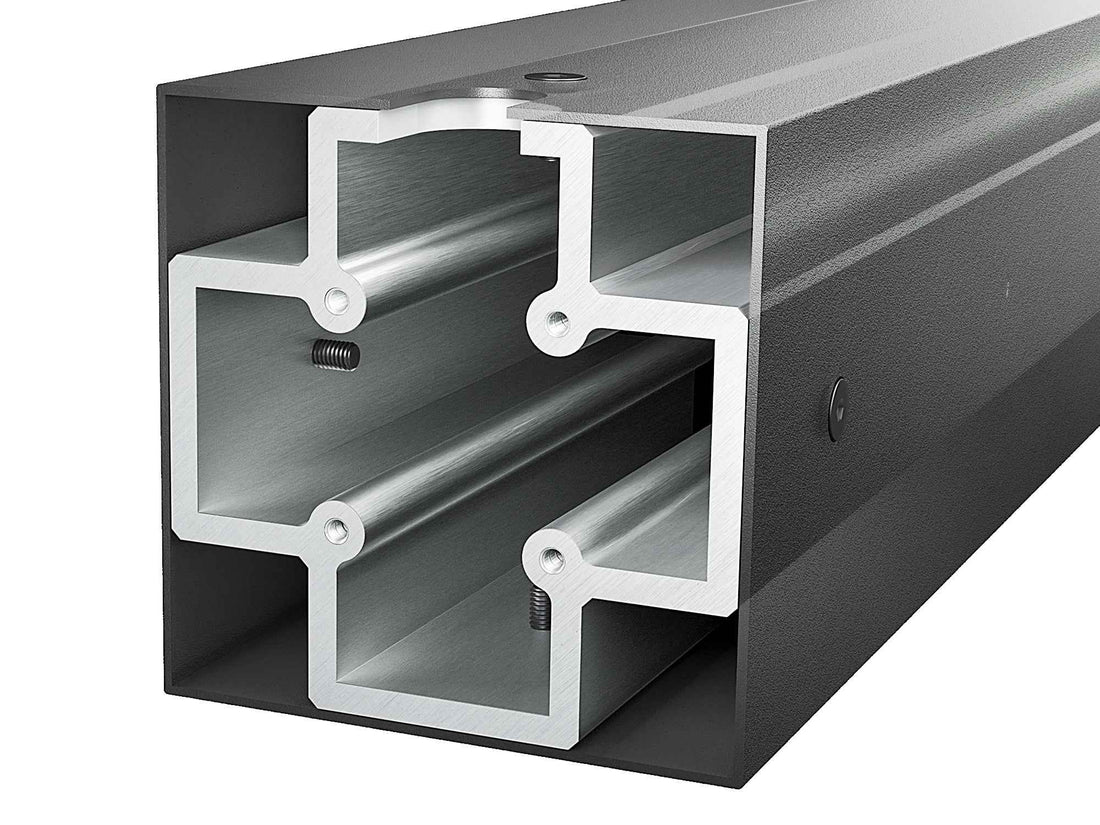

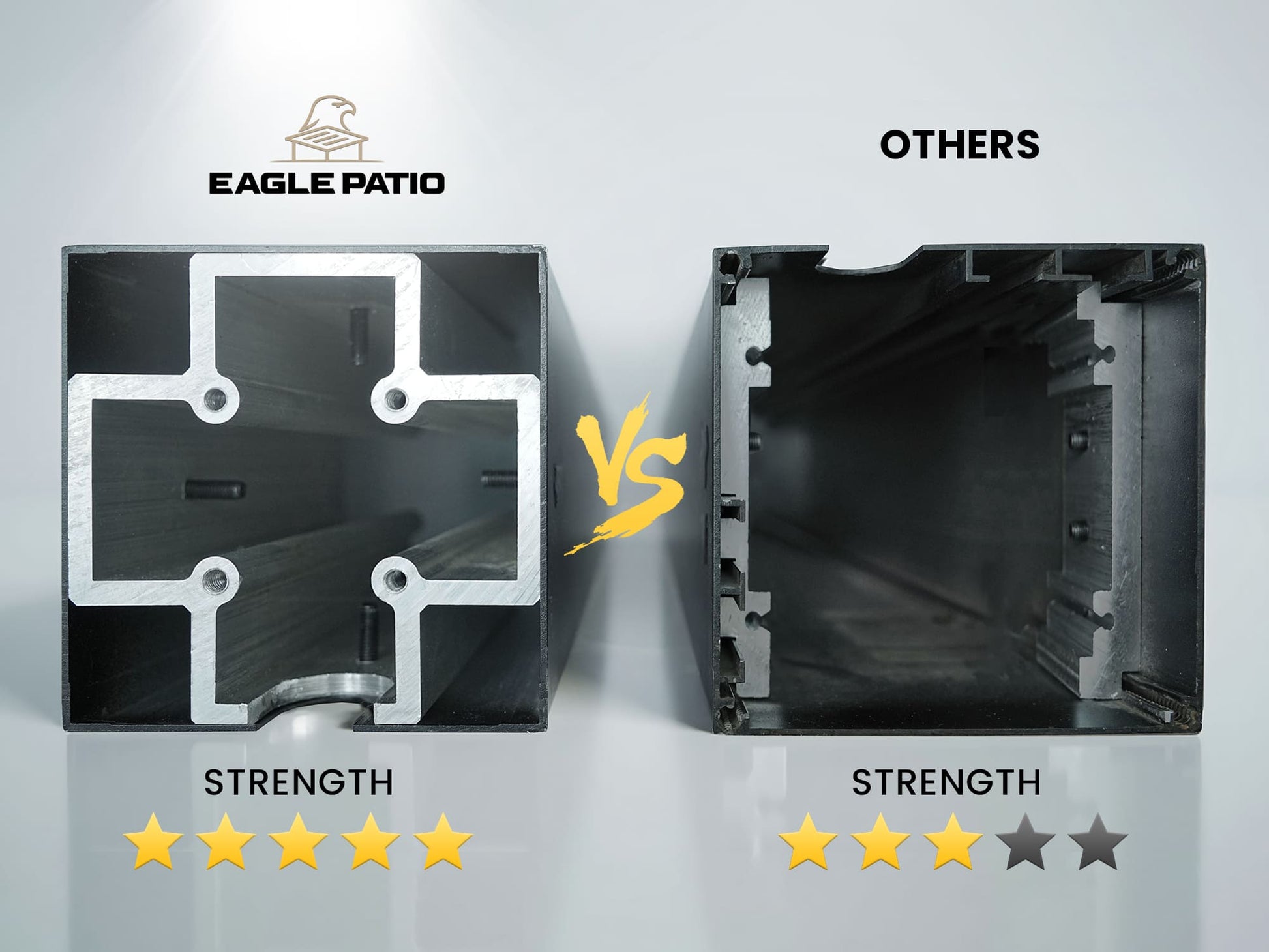

We Reinvented the Pillar Inside and Out

Our custom Ultra-Sturdy Structure reinforced thickness and structure, delivering superior stability where ordinary square posts fall short.

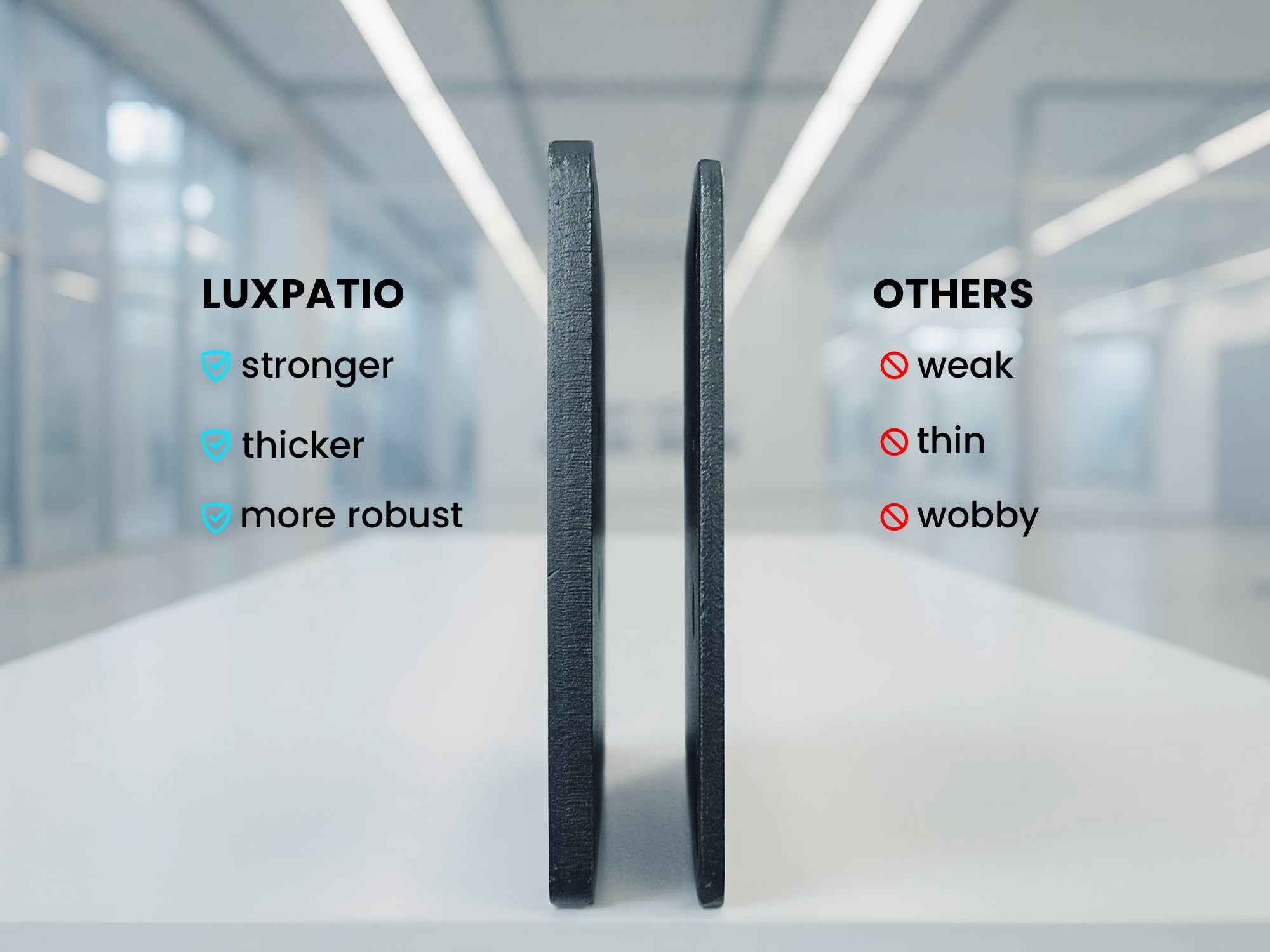

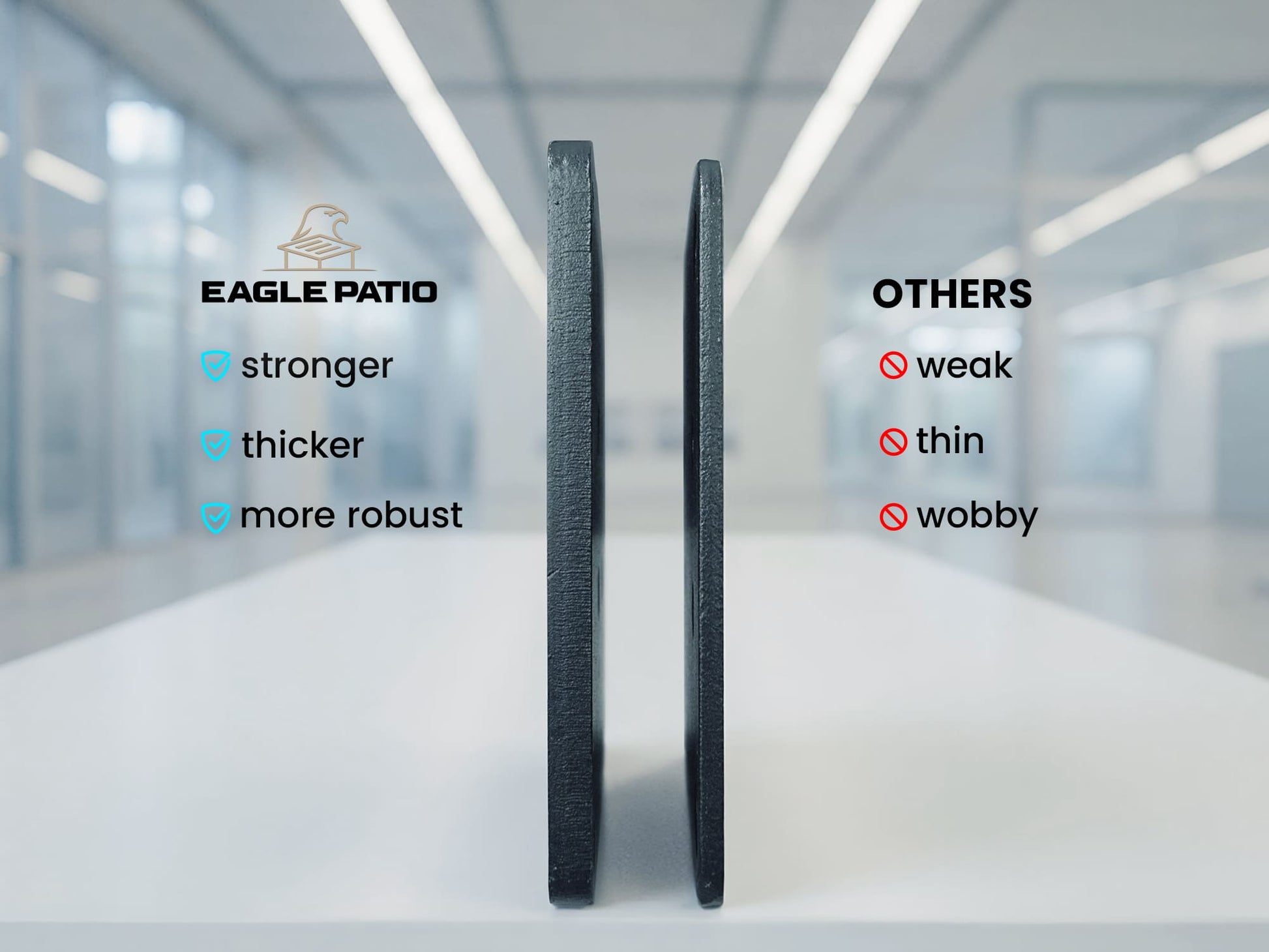

We Made the Base Thicker On Purpose

Most baseplates settle for “good enough.” We designed ours to be better—thicker, tougher, and built with purpose.

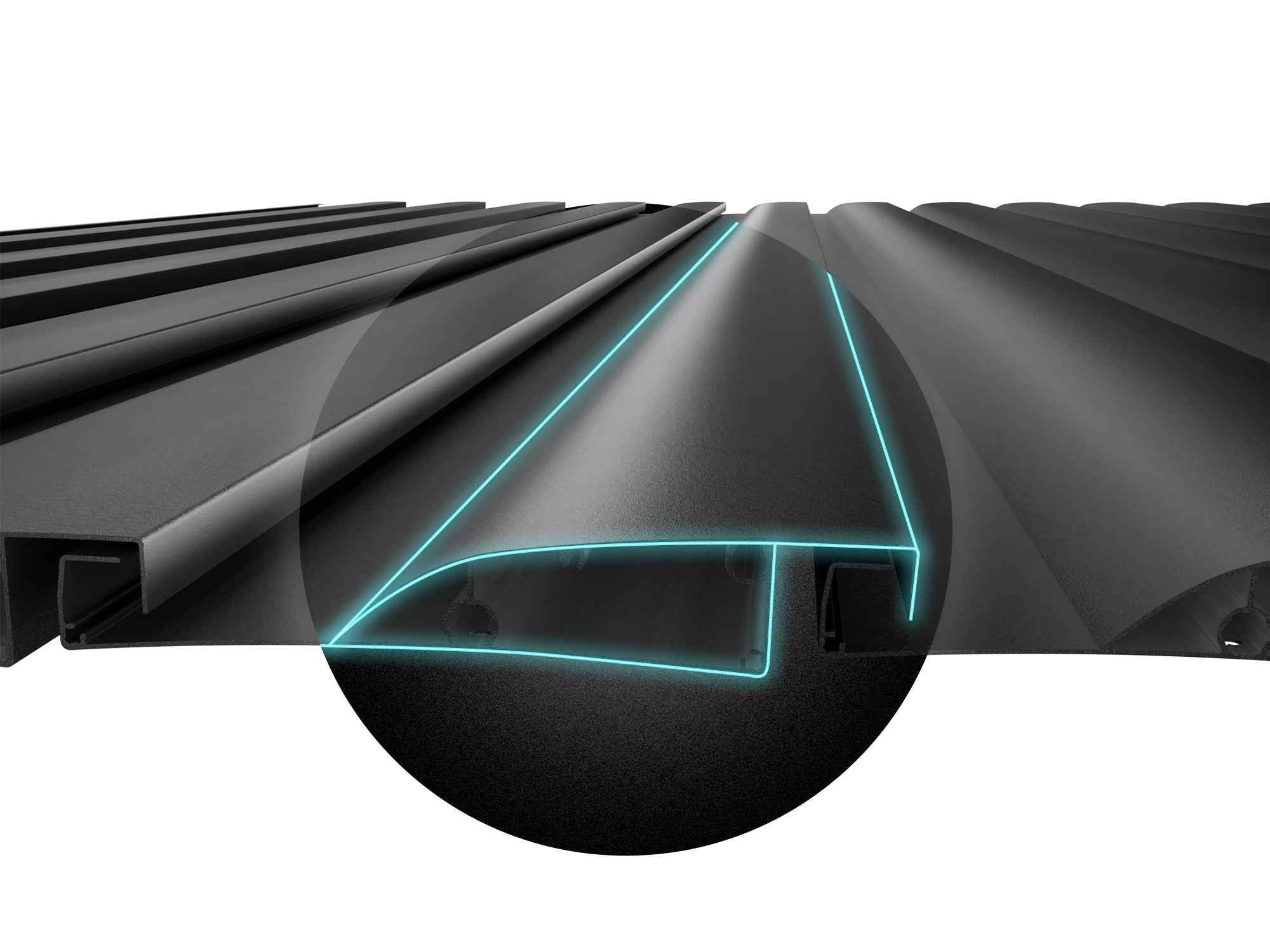

Aluminum louvered pergola beam cross-section, highlighting durable construction and design details for outdoor living.

Double-Layer Louvers, Because One Isn’t Enough

We added a second layer to our louvers for better durability, stronger wind resistance, and enhanced protection. Every layer serves a purpose—nothing extra, nothing wasted.

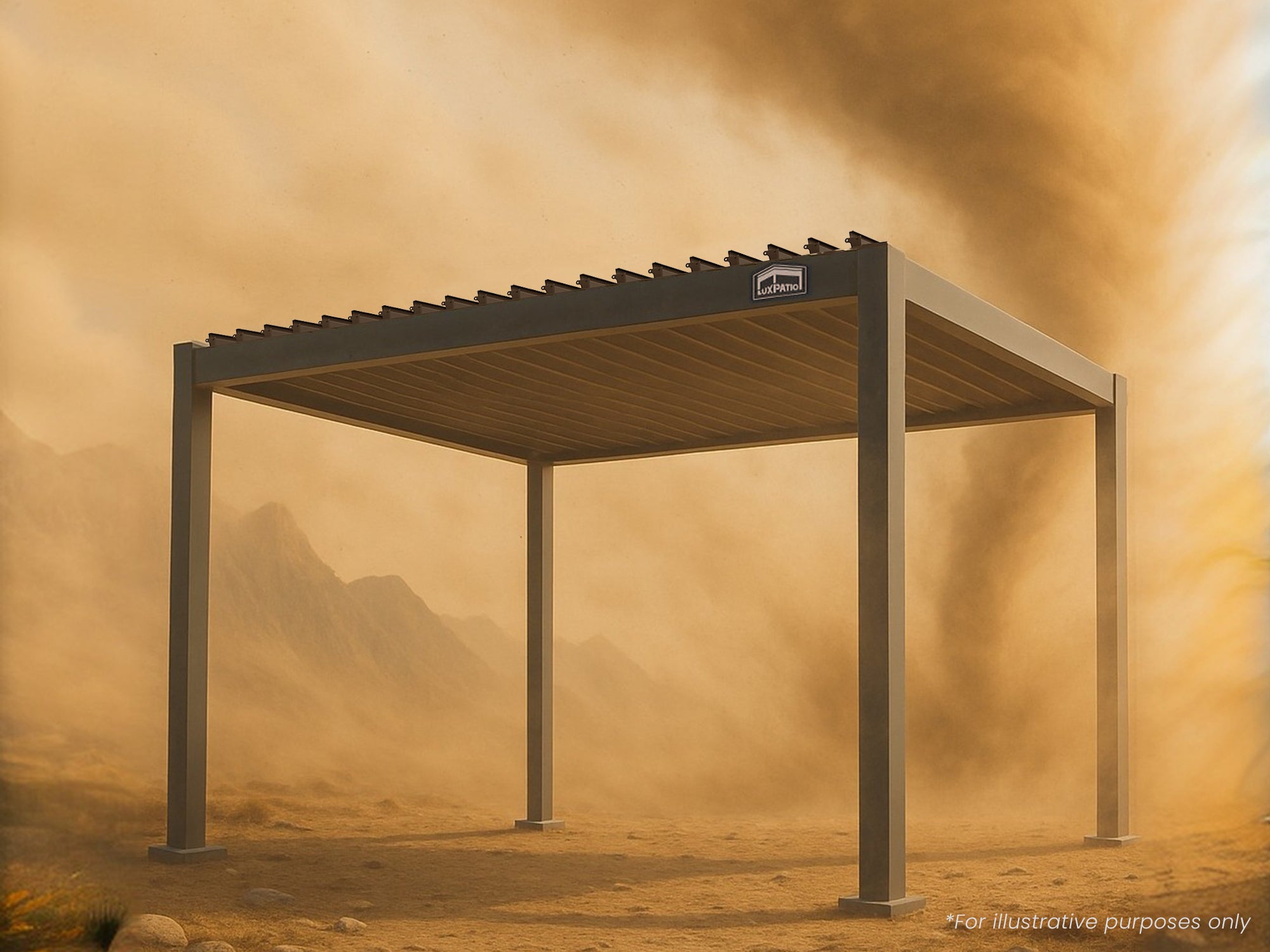

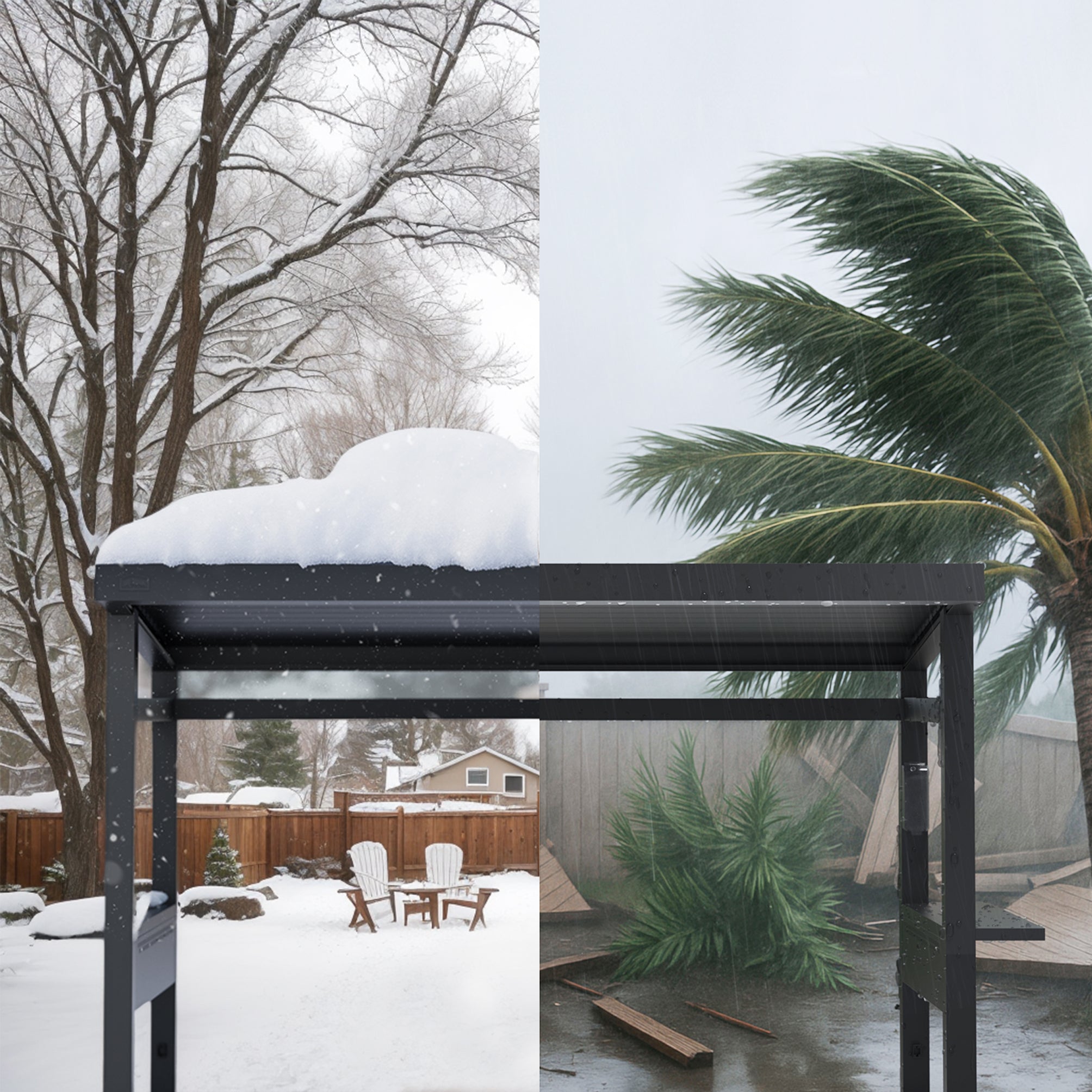

Built To Withstand Any Weather

From heavy snow to strong winds, we designed every part of this pergola to endure. Reinforced structures and thoughtful engineering ensure it stays firm when the weather turns harsh.

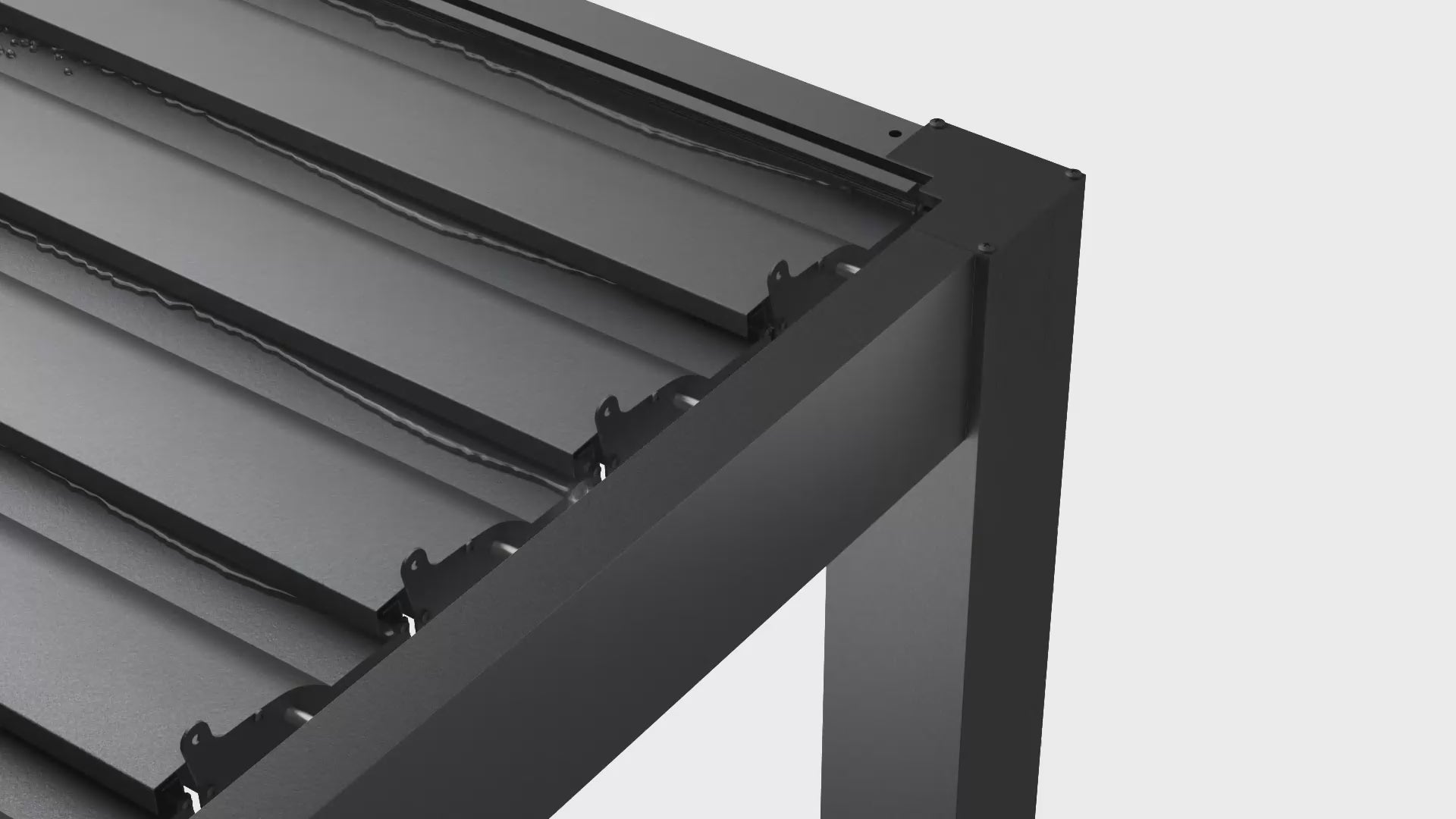

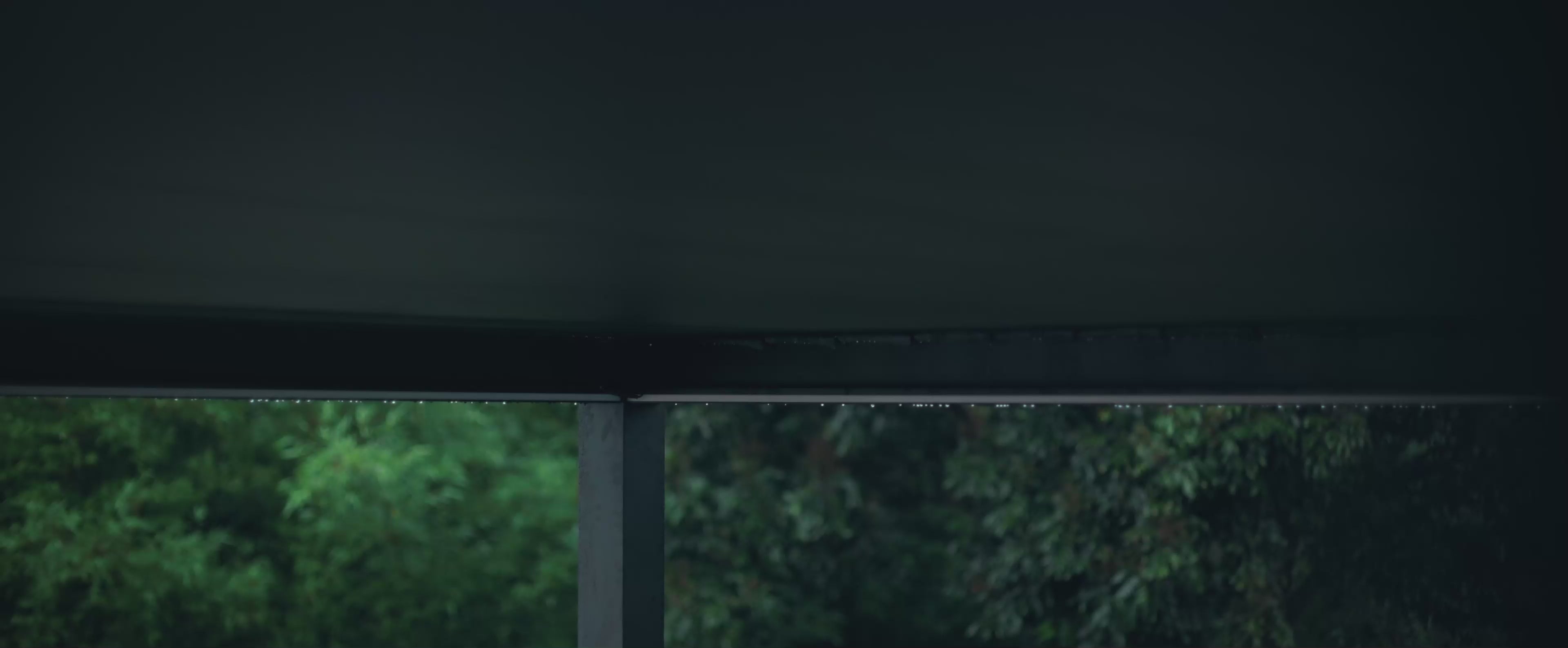

Load video: EaglePatio (formerly LuxPatio) Louvered Patio Drainage Video

Rain Has One Way Out. It’s by Design

Because water shouldn’t stick around. We’ve designed a clear path for rain to exit — efficiently, invisibly, through a single post. No puddles. No mess. Just a clean getaway.

Load video: EaglePatio (formerly LuxPatio) Louvered Pergola Coating

Eco-Friendly World-Class Coating

AkzoNobel, founded in 1963, is a Fortune 500 company selling in 150+ countries and ranks top three globally in its industry.

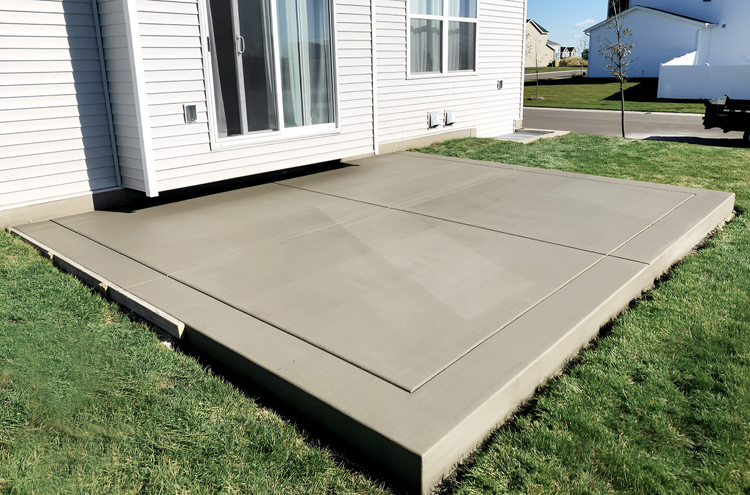

Step 1: Prepare the Foundation

Ensure the installation area is level and stable. Suitable foundations include concrete, pavers, or wood/composite decking—with concrete being the preferred option for maximum stability.

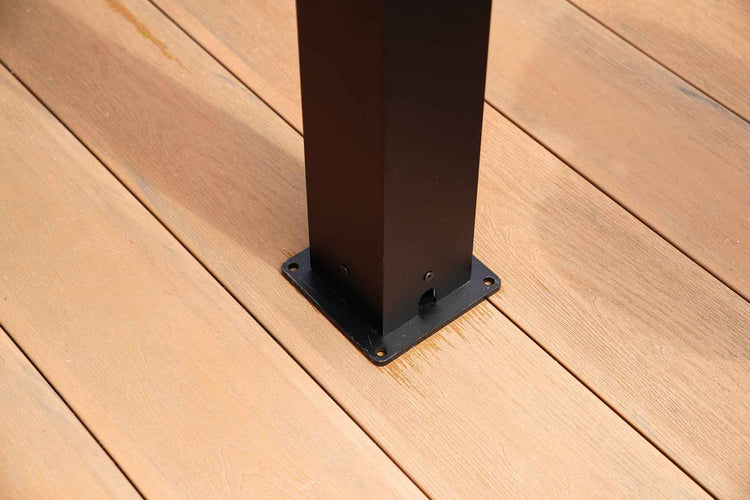

Step 2: Attach the Base Plates

Secure each base plate to a vertical post using four screws.

Step 3: Install Gearbox Components (Manual Roof Only—Skip for Electric Roof Versions)

Attach the gearbox to the pivot bar and beam using the included brackets and screws.

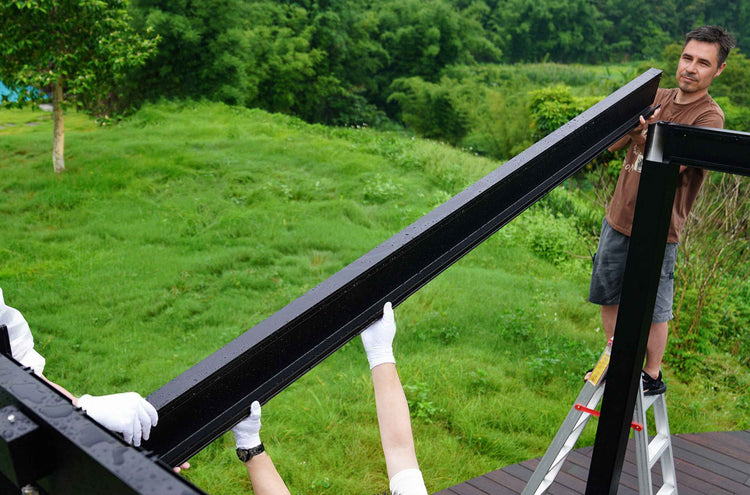

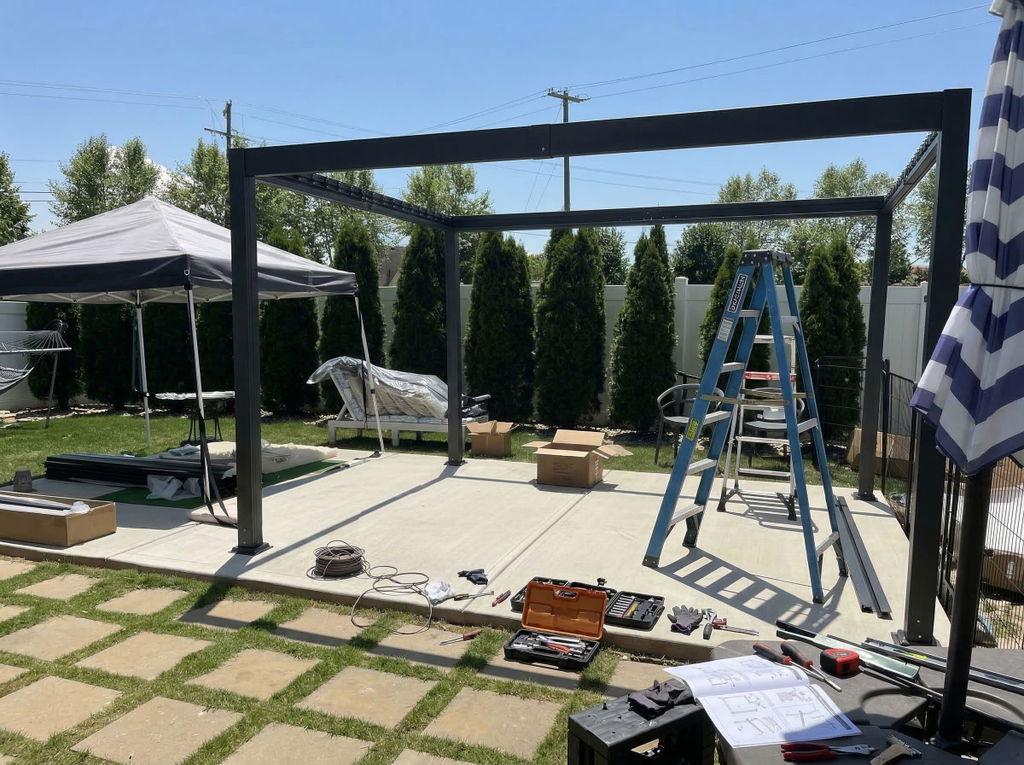

Step 4: Assemble the Frame

Connect the posts to the beams. With 2–3 people, raise the frame into position. Assistance is recommended due to the size and weight of the components.

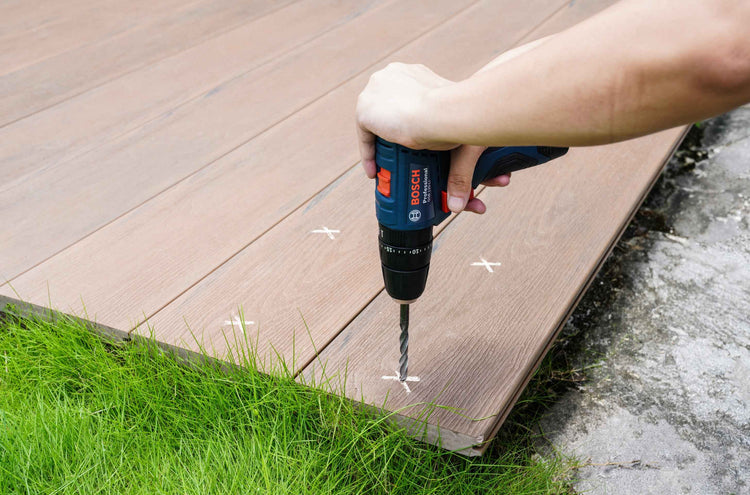

Step 5: Pre-Drill Anchor Points

Measure and mark the anchor locations based on the base plates. Then, pre-drill holes to prepare the surface for secure anchoring.

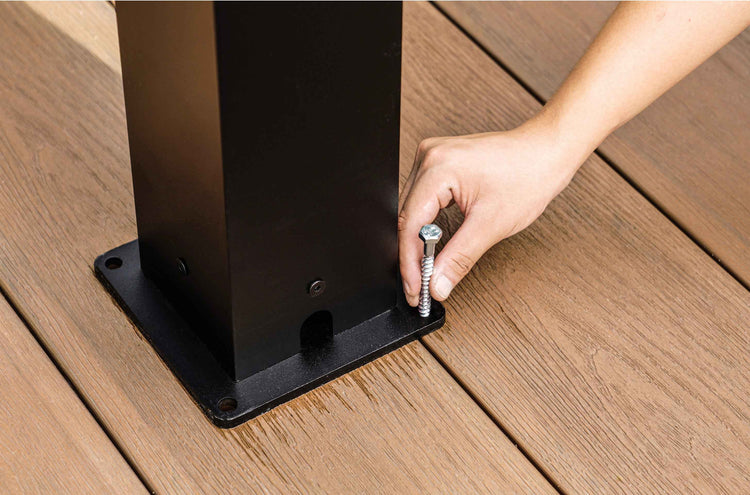

Step 6: Anchor & Final Touches

Anchor the pergola to the ground as specified. Install the hand crank, base covers, and power board cover. Tighten all bolts and ensure the structure is stable.

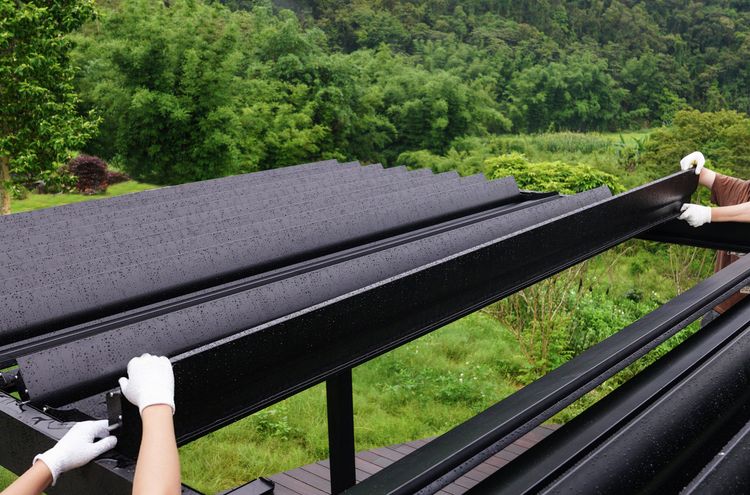

Step 7: Attach the Louvers

Secure the louvers to the beams to complete the roof coverage.

Which Louvre 5 Model is for me?

It depends on which model you choose:

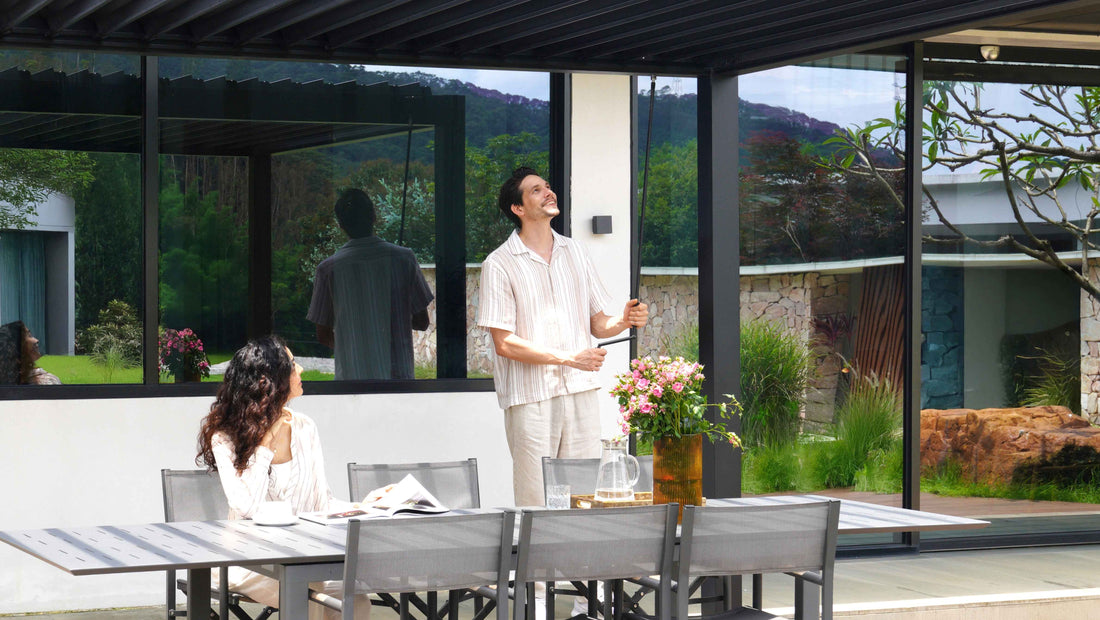

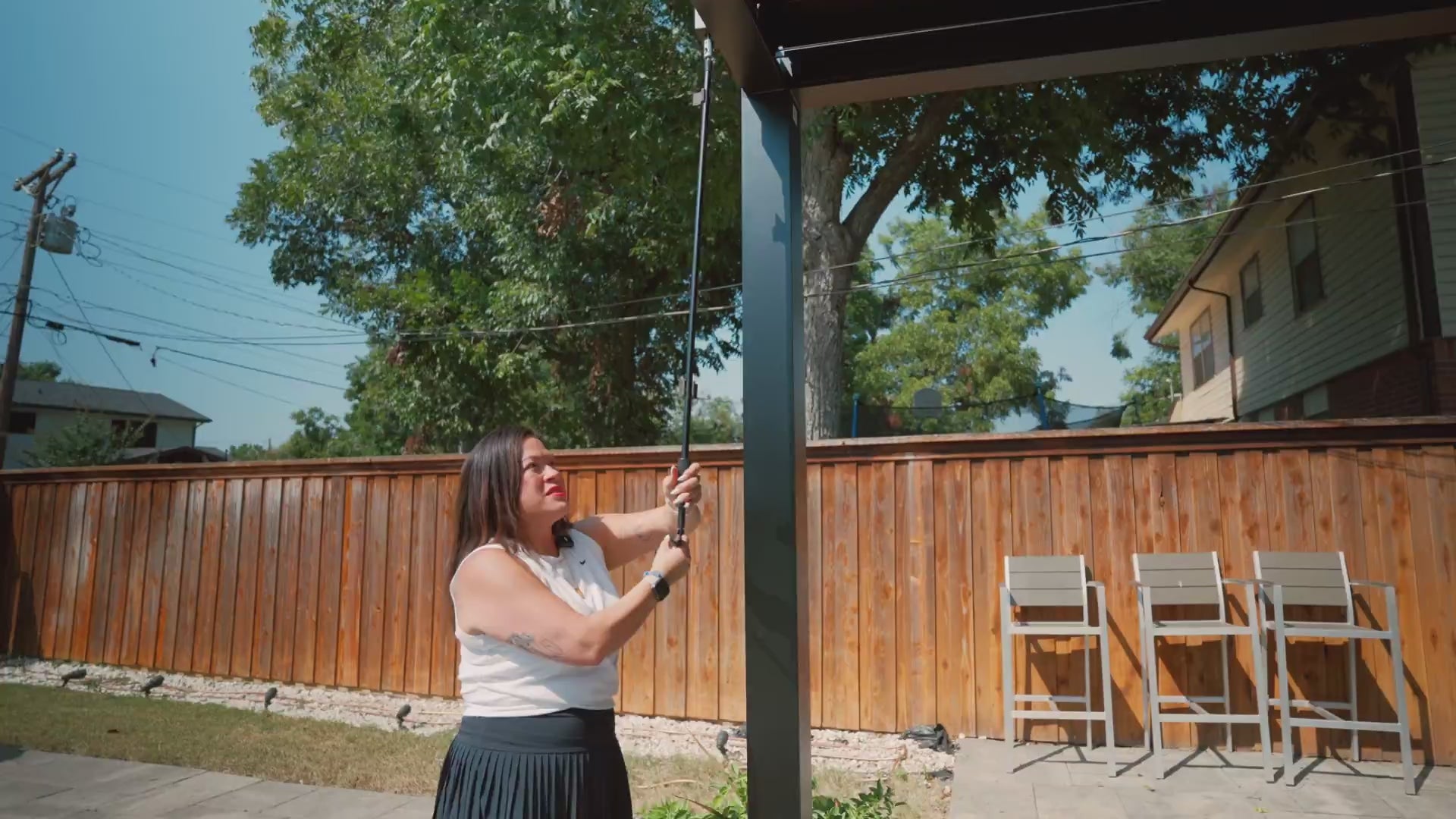

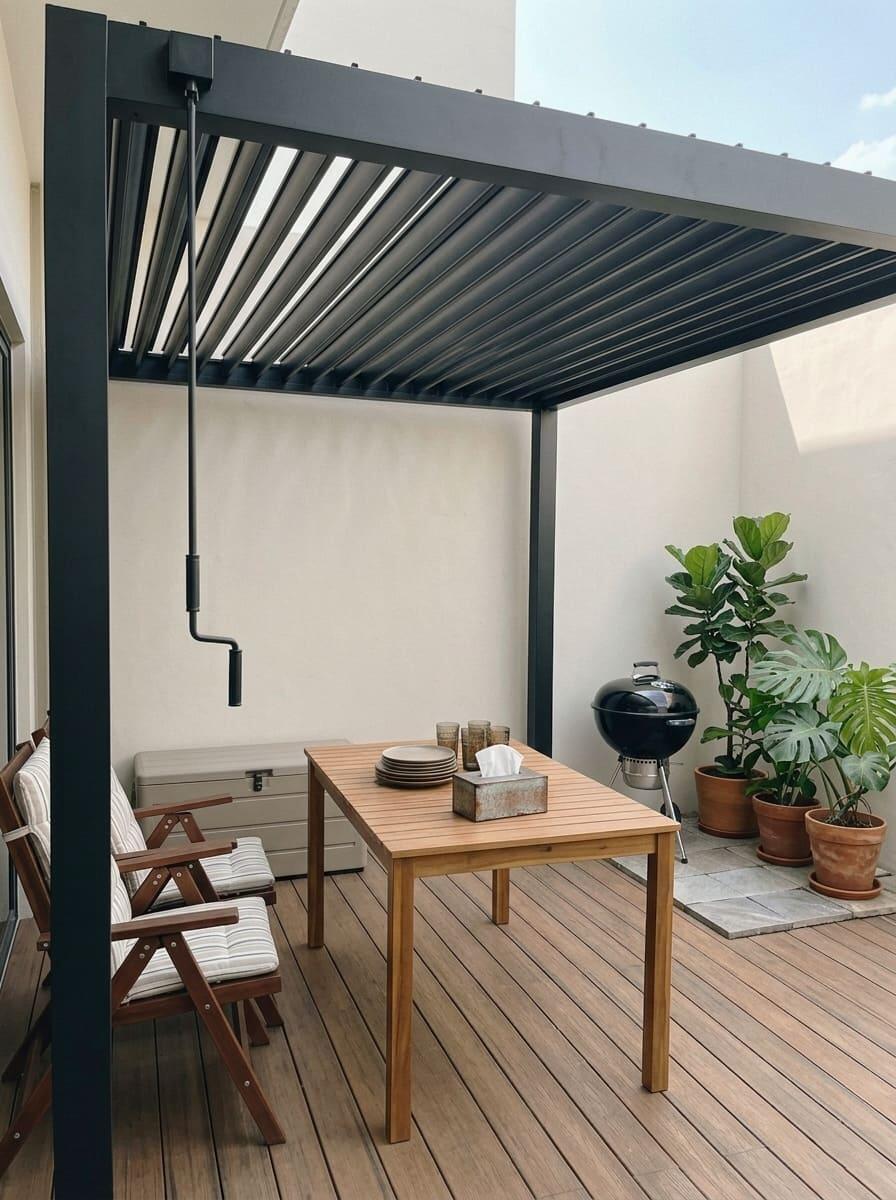

Manual Roof model: You simply use the hand crank to adjust the louvers. Turn the handle to open or close the slats to let in sunlight or block it as needed—easy and straightforward.

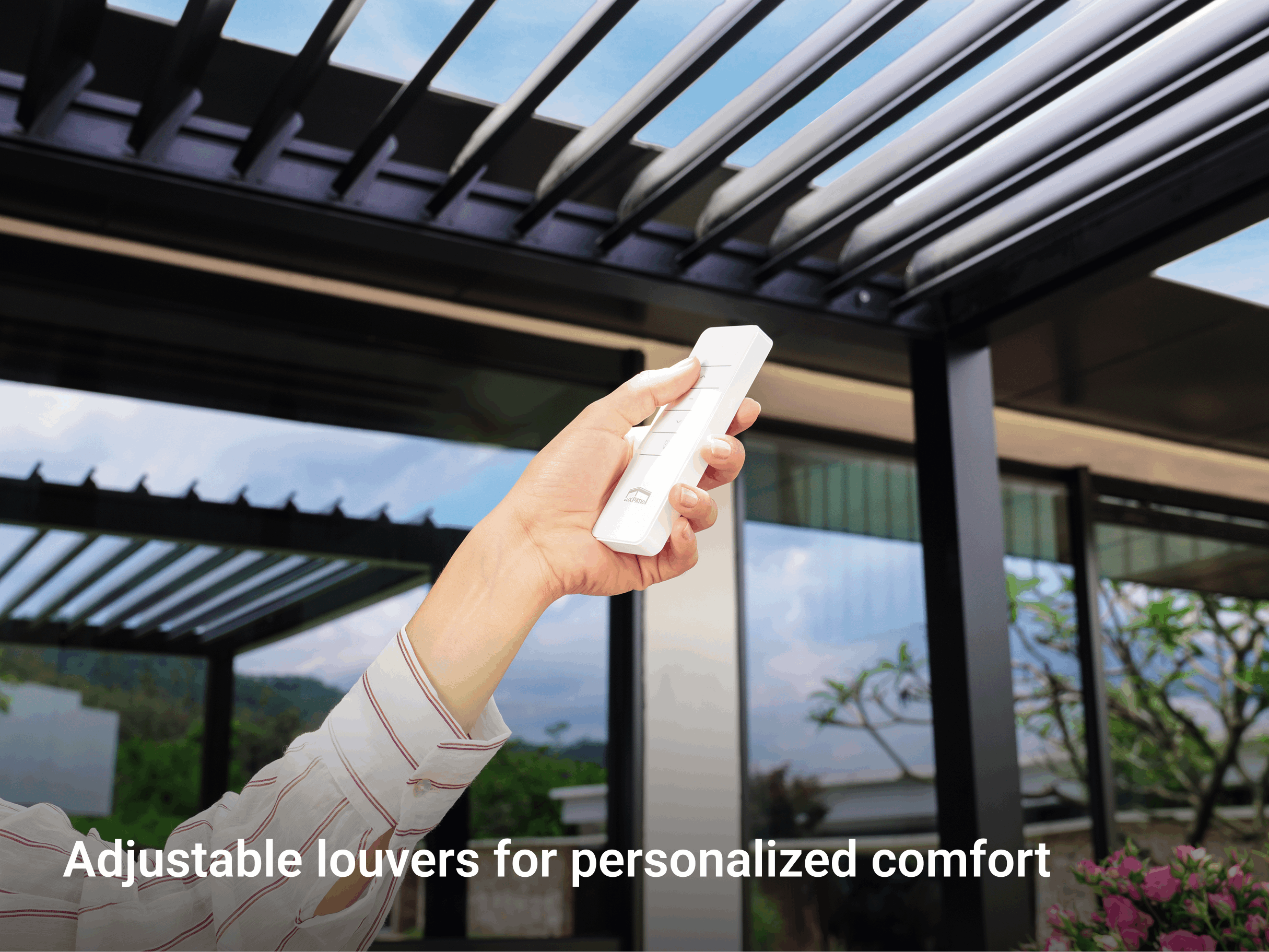

Electric Roof + LED Lighting model: You can adjust the louvers with a remote control. Just press a button to open, close, or tilt the louvers to your preferred angle; it’s smooth, quiet, and effortless.

Both options let you control sunlight, shade, and ventilation—the difference is whether you want to do it by hand or with a remote control. Both models are available in 3 sizes (10' x 10', 10' x 12', and 12' x 12').

How do I open or adjust the roof louvers?

It depends on the model. The manual version uses a hand crank—just turn it to open or close the louvers. The electric model comes with a remote control, letting you adjust the angle at the push of a button. Both give you easy control over sunlight, shade, and airflow.

How long will it last?

Louvre 5 is engineered to last up to 30 years with minimal maintenance. Crafted from premium 6063 T5 aluminum, it’s lightweight, rust-resistant, and built for long-term durability. The frame features a high-performance AkzoNobel Interpon® powder coating for added protection and lasting style. Unlike wood, it won’t warp, rot, or require constant upkeep. Eco-friendly and easy to clean, Louvre 5 is designed to look great year after year—even in harsh weather conditions.

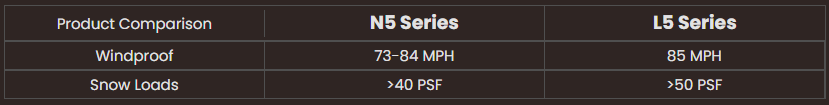

What are the wind and snow load limits for the Louvre 5?

Louvre 5 is built to withstand serious weather. Reinforced base posts provide superior stability, allowing it to handle winds over 85 MPH (hurricane-level) and support snow loads exceeding 50 PSF. Whether you’re hosting a winter gathering or unwinding on a blustery day, Louvre 5 keeps your outdoor space safe, stable, and comfortable all year round.

How does the Louvre 5 handle rain?

Louvre 5 is designed to handle rain smartly. When the roof louvers are closed, they form a water-tight seal that keeps rain from getting through. Any rainwater that lands on the roof flows into hidden drainage channels and is directed down through the posts—a built-in gutter system. So even during a downpour, you stay dry underneath, and water is neatly drained away without puddling.

Is it easy to self-assemble?

With the help of two or more competent adults, you can have Louvre 5 set up in about 2–4 hours (timing may vary). It’s designed with easy-access connections, so everything goes together from the outside—no awkward angles or tricky spots. Just grab your regular power tools and get started!

What should I do if the pergola arrives damaged or missing parts?

We're sorry for the trouble! If your gazebo arrives damaged or with missing parts, please contact us at support@eaglepatio.com or call 877-770-0567. We'll take care of it ASAP.

Does this pergola require a permit?

Permit requirements can vary depending on your location. That said, most of our customers do not need a permit to install their pergola. We recommend checking with your local building department or HOA to ensure your setup complies with any applicable codes, regulations, or community guidelines.
