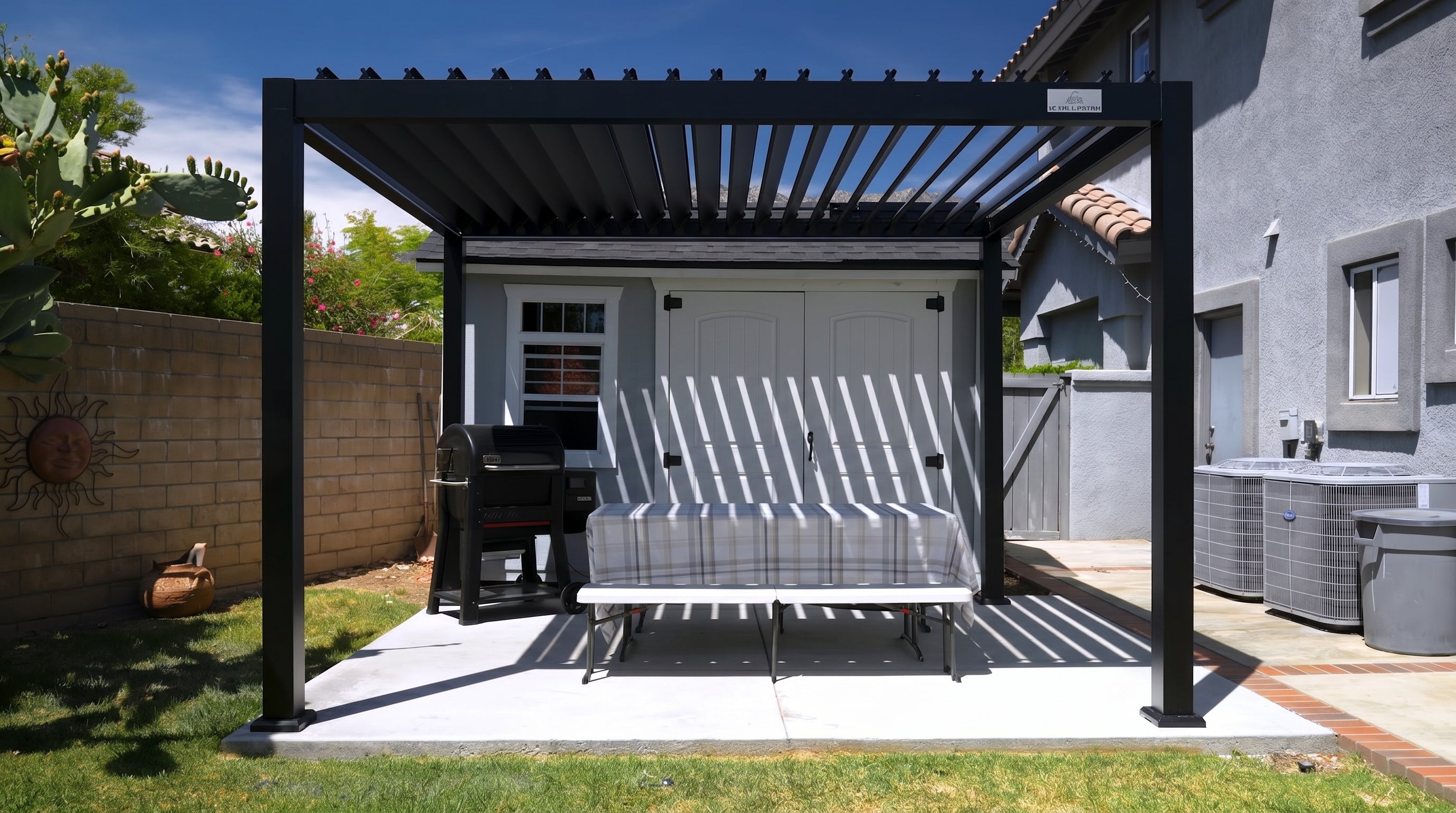

Dreaming of creating a comfortable outdoor retreat but worried about a complicated installation? The good news is that the Louvre L5 10' x 12' Motorized Pergola is designed with DIY-friendly assembly in mind. With a few helping hands, some basic tools, and a little preparation, most homeowners can complete the installation in a single afternoon.
Here's a simplified overview of the assembly process so you know what to expect before getting started.
Before You Begin
Gather a Few Helpers
While this pergola is designed for DIY installation, the beams and posts are large and heavy. We recommend having at least 2 adults available to assist with lifting and positioning components safely.
Choose the Right Installation Surface
The pergola should be installed on:
-
A concrete patio or slab
-
A structurally sound deck
-
A flat, level surface
A solid foundation is critical for proper operation of the motorized roof system. For maximum stability and safety, we recommend installing the pergola on a concrete slab. If a slab isn't available, pouring individual concrete footings for each post is a reliable alternative.
Organize Your Parts
For Motorized Models Only: Before installing the pergola, we strongly recommend connecting the power supply and performing a quick functionality test. Confirm that the LED lights illuminate properly and that the motorized louvers open and close smoothly using the remote control. This simple pre-installation check can help identify any potential issues early and ensure a smoother, more efficient assembly process.
Before assembly:
-
Unpack all components.
- Sort hardware by type.
- Keep the louvers in their packaging until needed.
-
Verify that all parts are included.
Spending a few minutes organizing parts can save a lot of time later.
Step 1: Attach the Base Plates to the Posts
Place cardboard underneath the assembly area to protect surfaces from scratches during installation. Then begin by securing the mounting plates to each of the four pergola posts.
Helpful Tip: Avoid fully tightening all screws at this stage. Keeping some flexibility in the frame makes alignment easier as you continue the installation.
Step 2: Build the Main Pergola Frame
Next, connect the side beams and front/rear beams to the posts to create the main structure.
As the frame comes together:
-
Use a level frequently.
-
Check that all posts remain straight.
-
Confirm the frame is square before tightening hardware.
A properly aligned frame is essential for smooth louver operation later.
Step 3: Anchor the Pergola
Once the frame is assembled and positioned:
-
Mark the mounting locations.
-
Drill anchor holes.
-
Secure the pergola to the concrete slab or deck.
-
Tighten all anchor hardware.
If you're installing on newly poured concrete, wait until the concrete has fully cured before proceeding.
Step 4: Seal the Frame Connections
Apply the included sealant to the beam joints.
This simple step helps:
-
Prevent water intrusion
-
Improve weather resistance
-
Protect the pergola over time
Think of it as inexpensive insurance for your investment.
Step 5: Install the First Louvers
Before installing the full roof system, install the first louvers according to the designated motor location.
Pay close attention to louver orientation:
-
The curved side should face upward.
-
Louvers should be aligned consistently across the roof.
Taking your time here will make the rest of the installation much smoother.
Step 6: Install the Remaining Louvers and Pushrod
Once the first louvers are in place, install the remaining louvers and connect them to the pushrod system.
This mechanism allows all louvers to move together when the motor operates.
Continue checking alignment as you work to ensure smooth operation.
Step 7: Install the Motor and Electrical Components
This is where the motorized model differs from the manual version.
The motor assembly is mounted inside the designated beam area and connected to:
-
The louver mechanism
-
Power supply
-
Lighting system (if included)
Safety Note
If you're unfamiliar with electrical work, consult a licensed electrician before connecting power to the pergola.
Step 8: Test the Motorized Roof
Before installing the final covers:
-
Connect power.
-
Test the remote control.
-
Open and close the louvers several times.
-
Verify the motor operates smoothly.
-
Confirm all functions respond correctly.
It's much easier to make adjustments before the decorative covers are installed.
Step 9: Install Decorative Covers and Finishing Pieces
Finish the installation by adding:
-
Post caps
-
Decorative trim pieces
-
Base covers
-
Beam cover plates
-
Wire management clips
These final details give the pergola its clean, finished appearance.
Final Inspection Checklist
Before enjoying your new pergola, confirm:
✅ All hardware is securely tightened
✅ The pergola is fully anchored
✅ The motorized louvers open and close smoothly
✅ Remote control functions operate correctly
✅ Electrical connections are secure
✅ Decorative covers are installed
Is This a DIY-Friendly Project?
Absolutely—with realistic expectations. For homeowners who are comfortable using a ladder, drill, and basic hand tools, the Louvre L5 can typically be assembled in just 3–5 hours with the help of a friend or family member. What makes the installation especially beginner-friendly is its thoughtfully designed construction. The pergola features an external connection structure, making it easier to align and secure components without dealing with complicated internal fittings. It also requires fewer screws than traditional pergola designs, reducing assembly time and simplifying the process. In addition, many components arrive pre-assembled, allowing you to skip several steps and get your pergola set up faster. With a little preparation, organization, and attention to keeping the frame level throughout the build, you'll be rewarded with a smooth installation process and an outdoor living space you can enjoy for years to come.
Maintenance Tips
To keep your pergola looking beautiful and performing at its best for years to come:
-
Clean the frame every 3–4 months using mild soap and water.
-
Keep the integrated gutters and drainage channels free of leaves, dirt, and debris to ensure proper water flow.
-
Never place heavy objects on top of the louvers.
-
During periods of high winds or heavy snowfall, leave the louvers in the fully open vertical position to help reduce stress on the structure.
-
Inspect all hardware seasonally and tighten any loose fasteners as needed.
Before Adding Decorative Lighting or Accessories
If you plan to install string lights, decorative lighting, speakers, or other accessories, please keep in mind that the pergola features a built-in gutter and drainage system concealed within the beams and posts. Drilling screws into certain areas may puncture these internal water channels, potentially leading to water leaks or drainage issues over time.
If you're unsure whether a specific modification is suitable, we encourage you to contact our team at support@eaglepatio.com before making any alterations. We're always happy to help ensure your upgrades are both safe and pergola-friendly.
